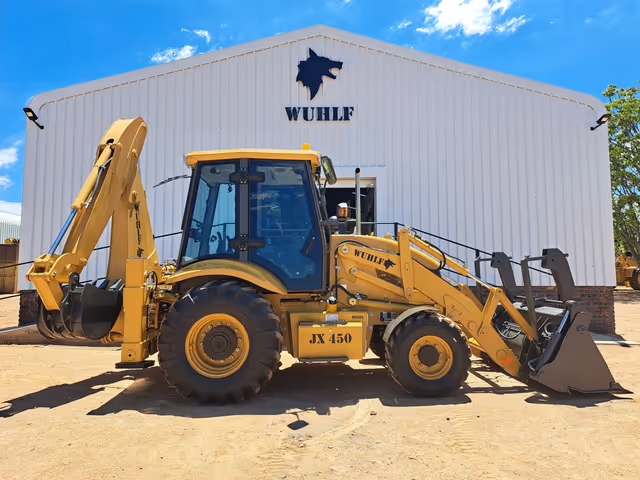

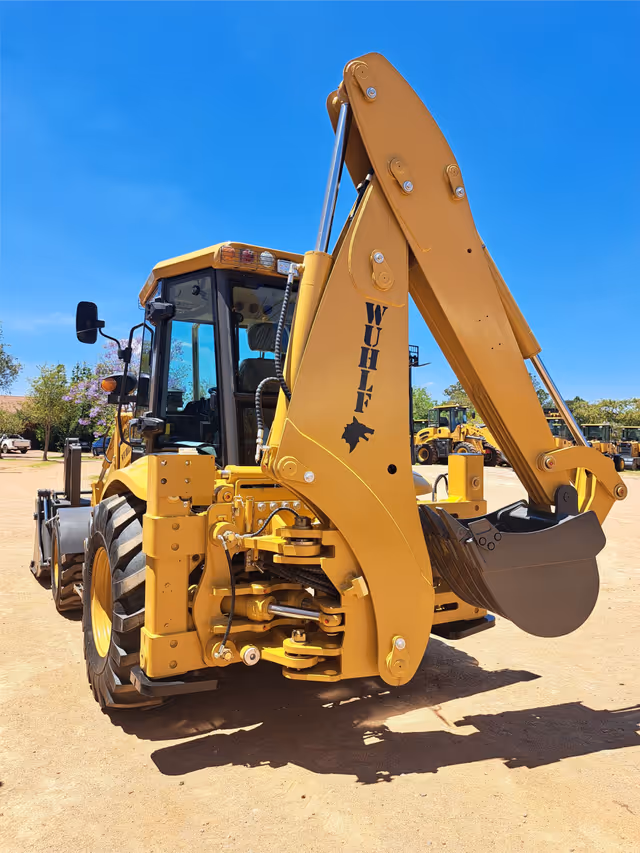

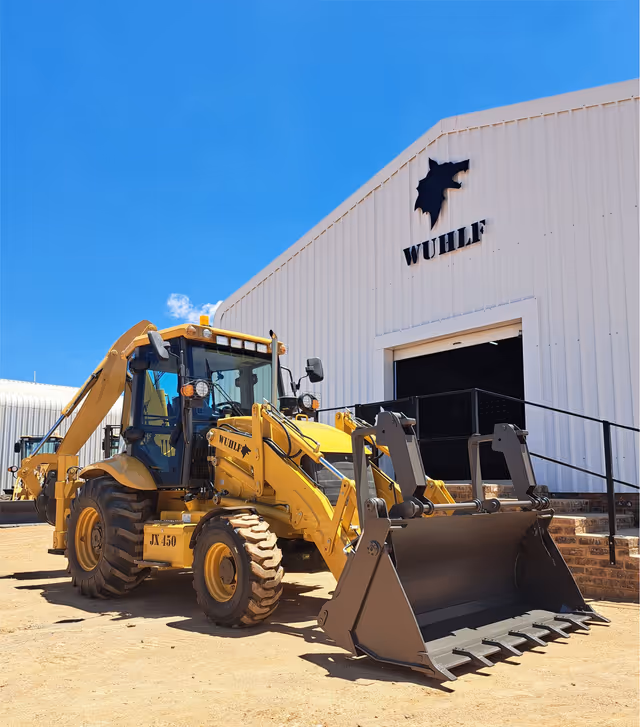

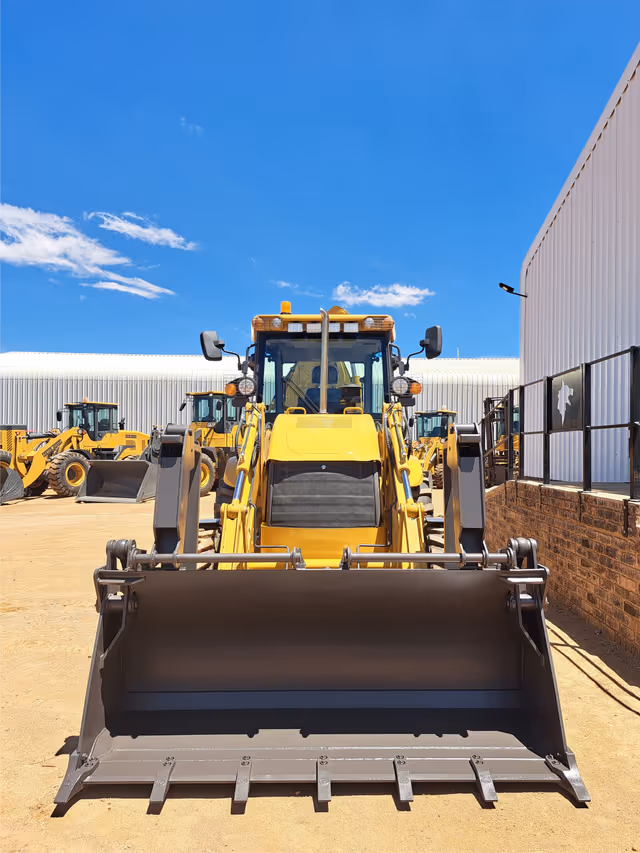

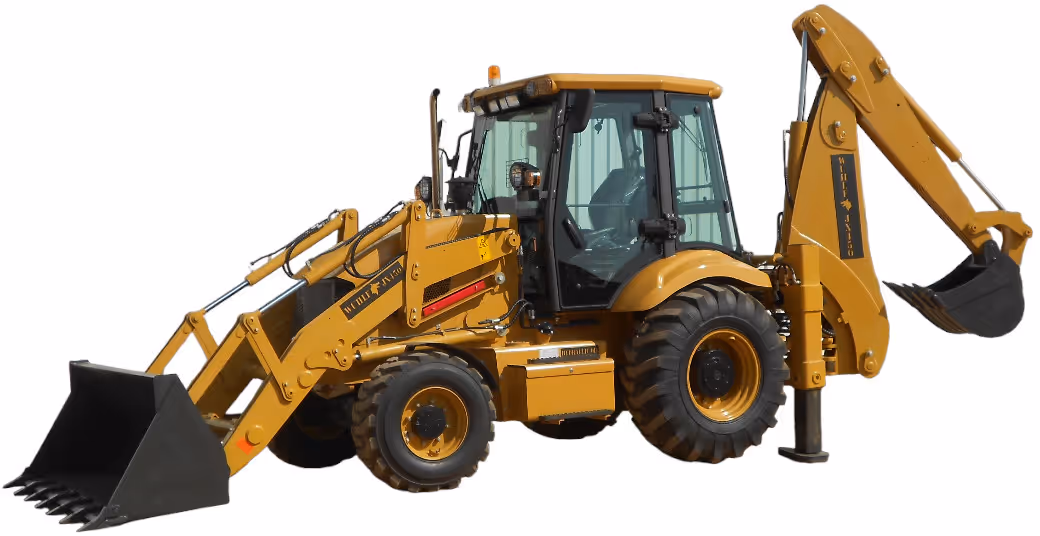

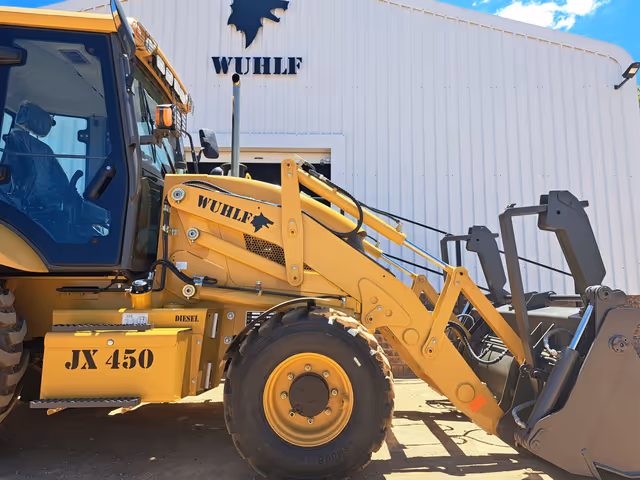

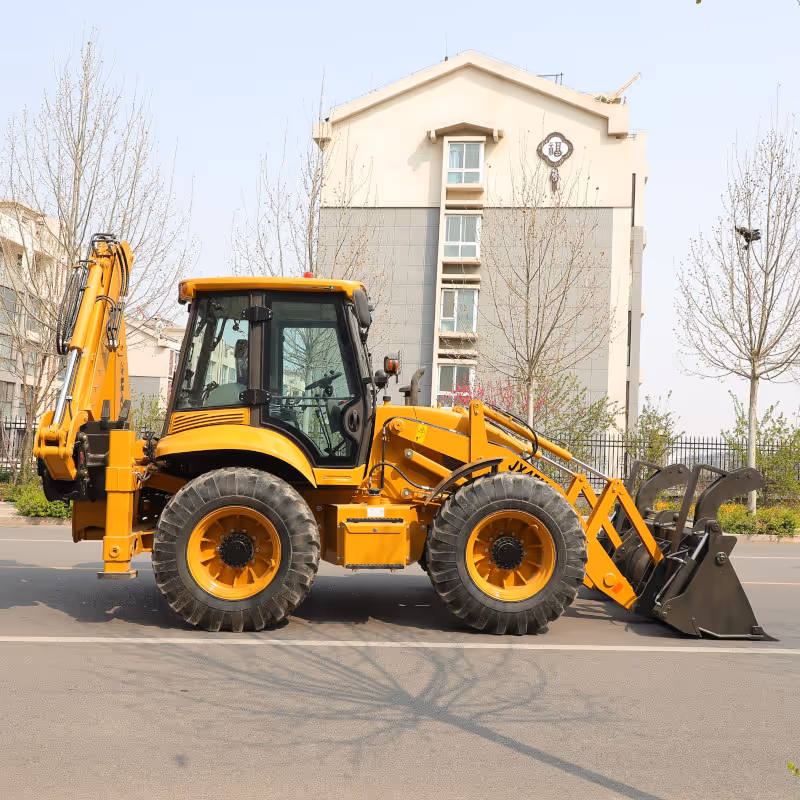

JX450 TLB
4x4 TLB
Dimensions
Overall Length
5 919mm
Overall Width
2 300mm
Overall Height
3 460mm
Maximum Dump Height
3 400mm
Dumping Reach
1 062mm
Wheel Base
2 200mm
Min Ground Clearance
370mm
Operating Weight
8 600kg
Specifications

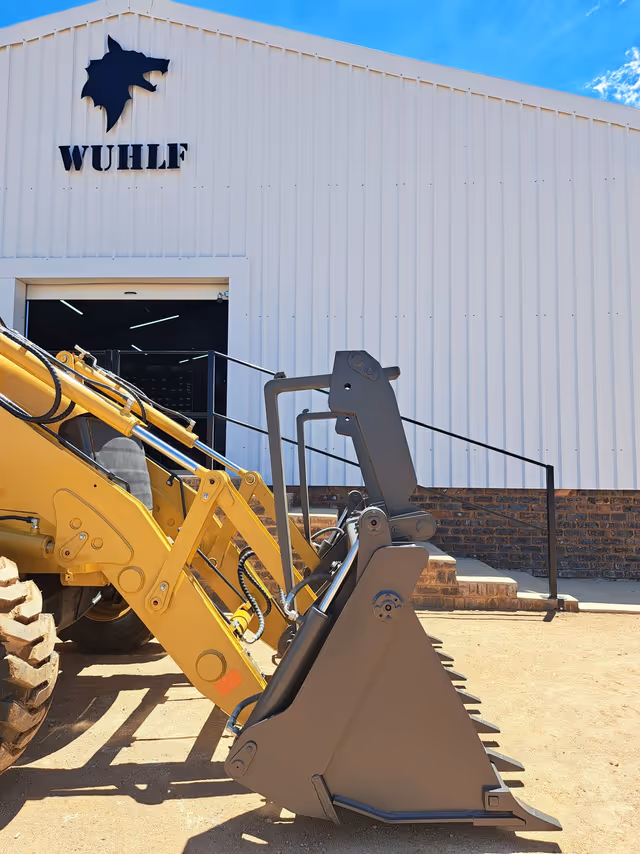

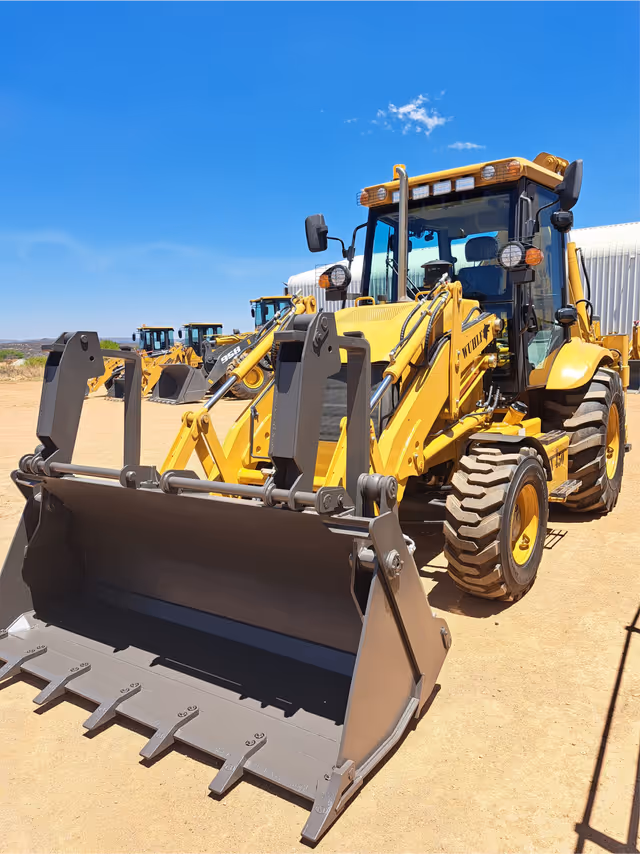

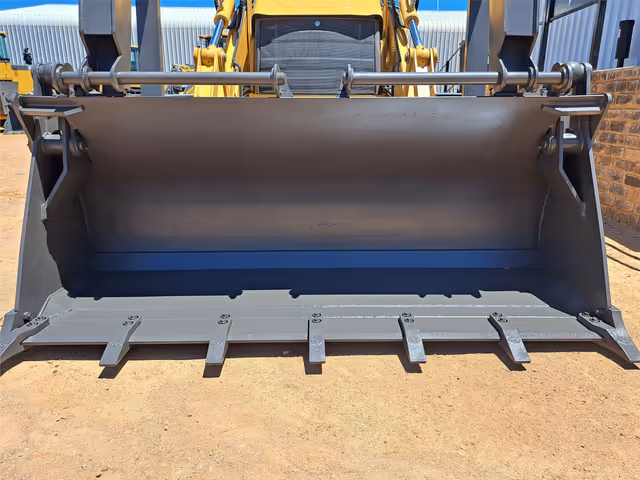

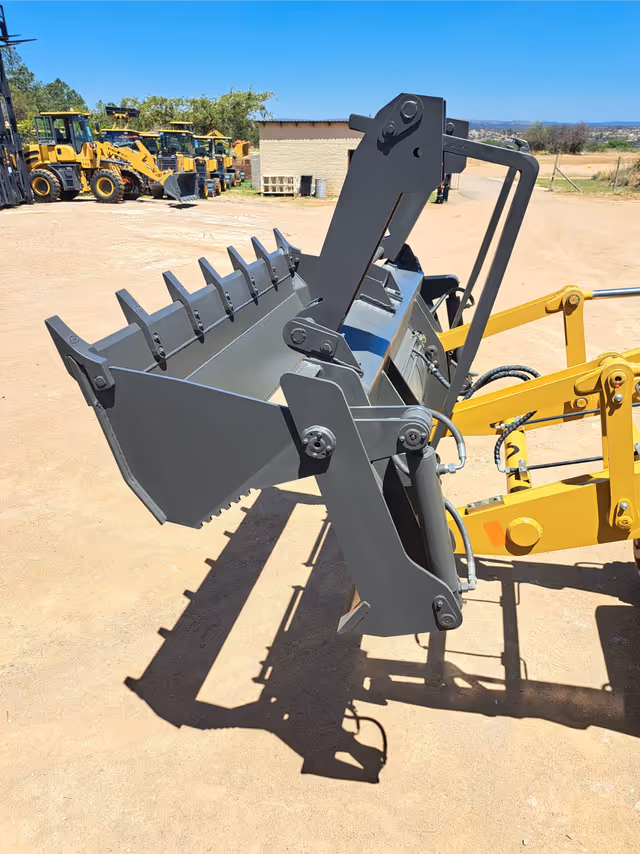

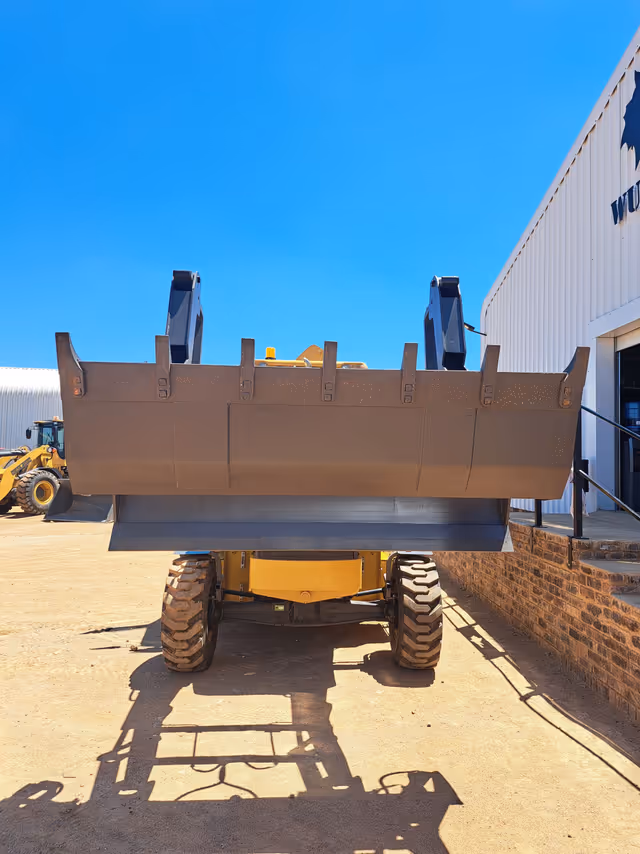

Loader Bucket Capacity
1.0m³

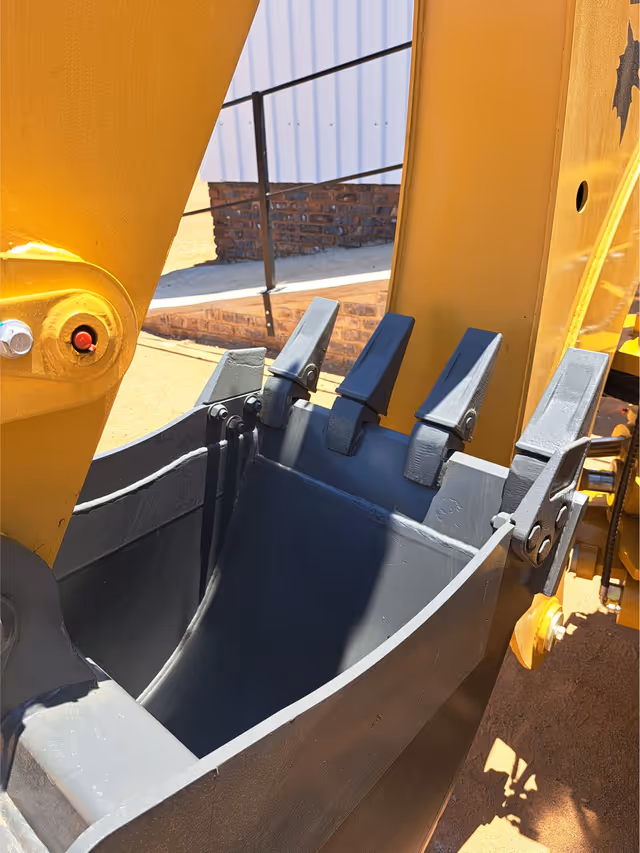

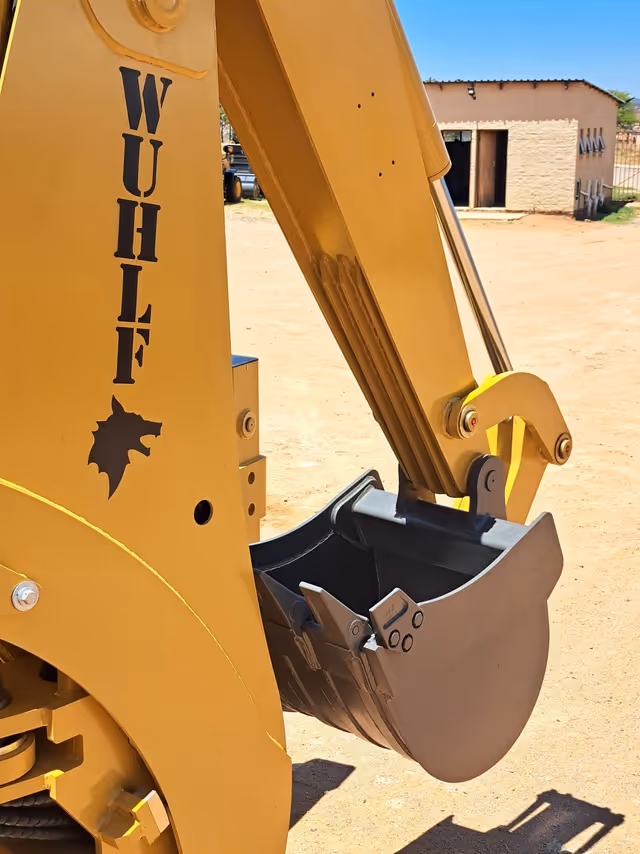

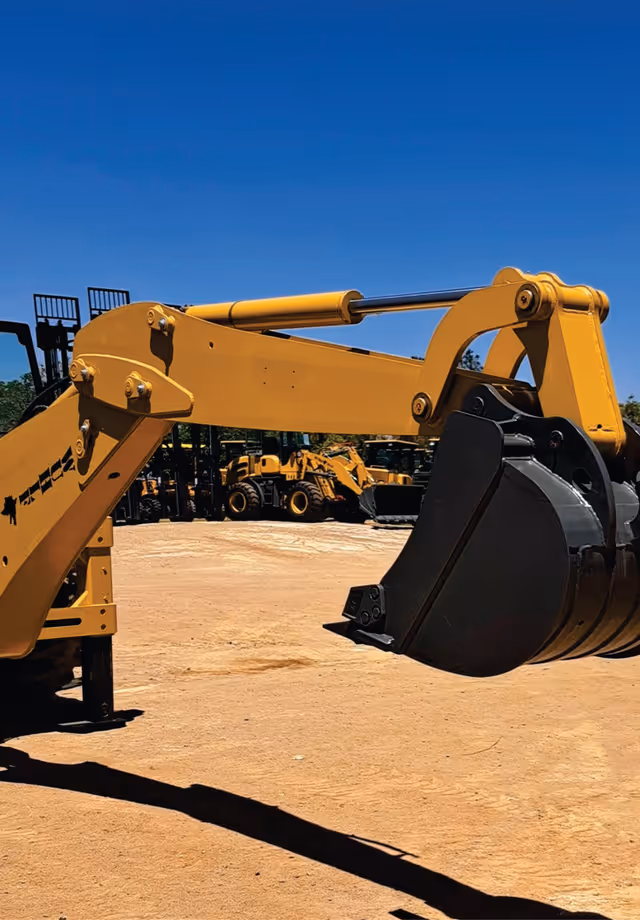

Backhoe Bucket Capacity
0.3m³
Min Turn Radius
6 581mm
Max Climbing Gradient
30°

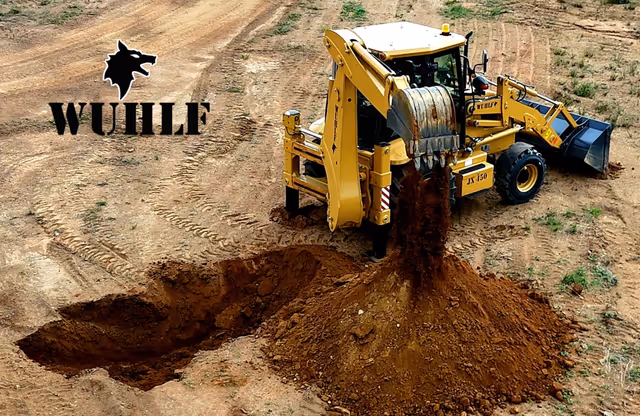

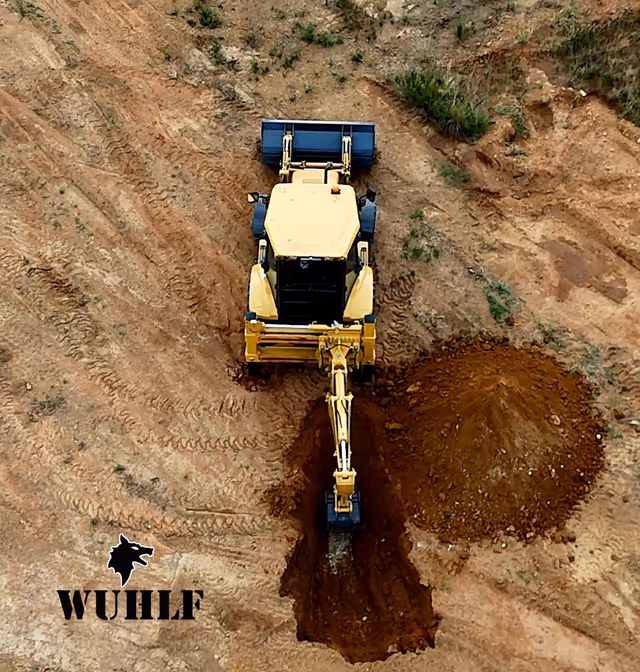

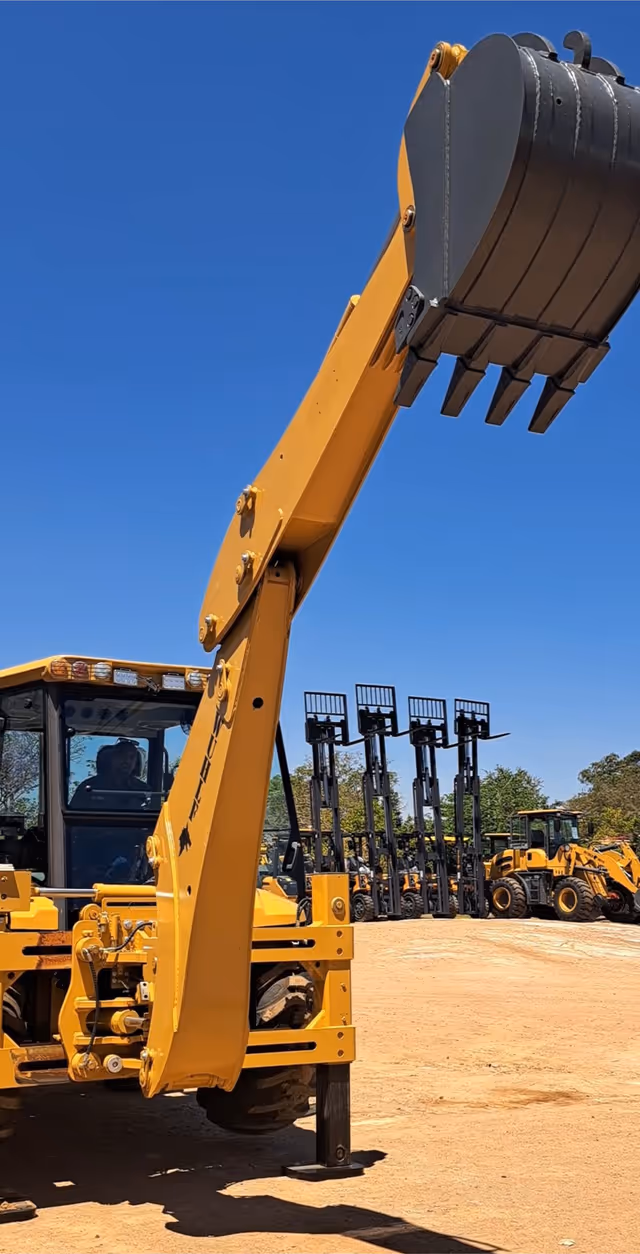

Max Digging Depth
4 082mm
Load Lifting Capacity
2.5 Ton
Breakout Force
38kn
Max Pulling Force
39kn
Traveling Speed
Max Speed
24 km/h
Forward Low
8 km/h
Forward High
24 km/h
Reverse Low
8 km/h
Reverse High
16 km/h

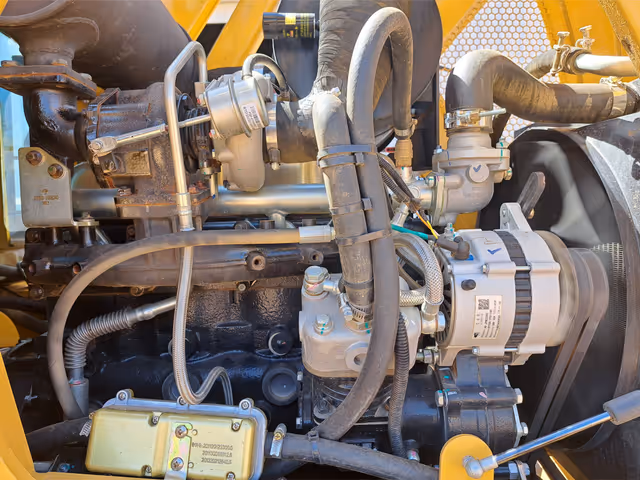

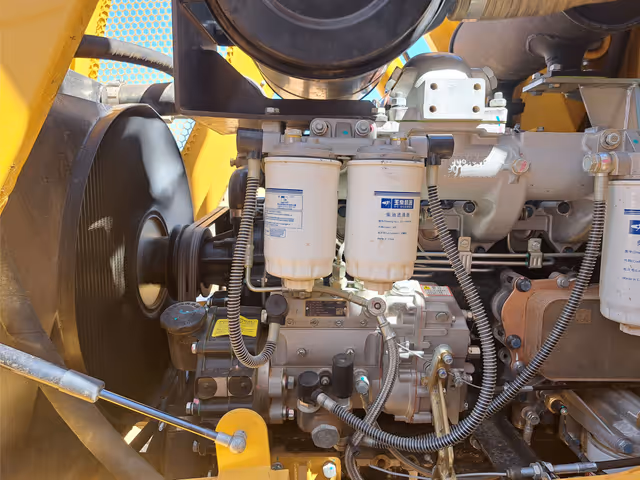

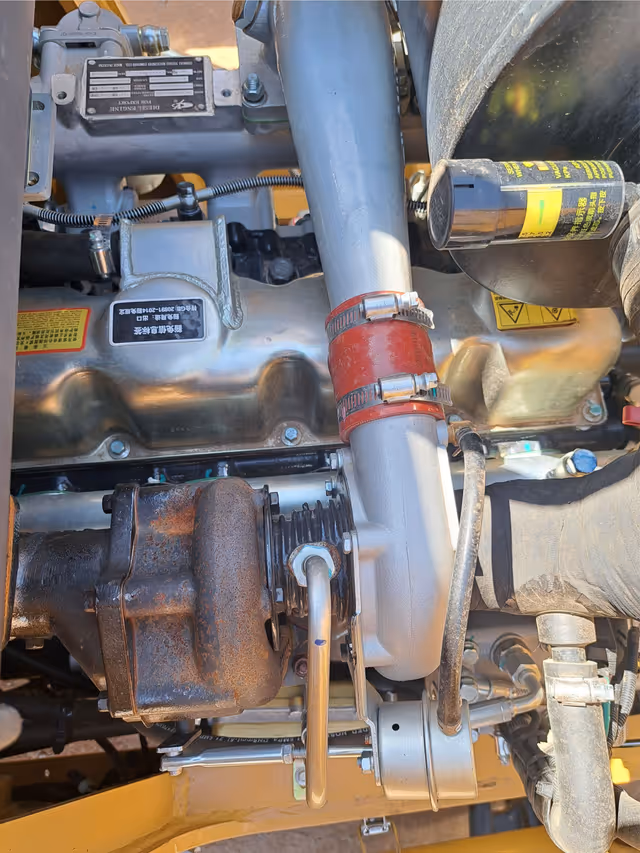

Engine
Type
4cyl Diesel
Rated Power
75kW
Rated Speed
2 400rpm
Model
Yuchai
Tyres

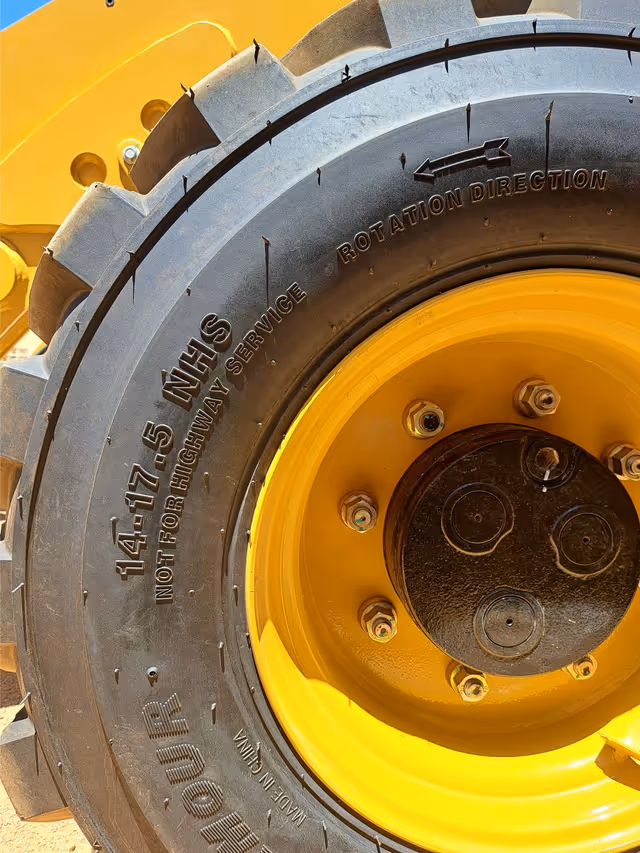

Standard Tyre Size Front
14-17.5

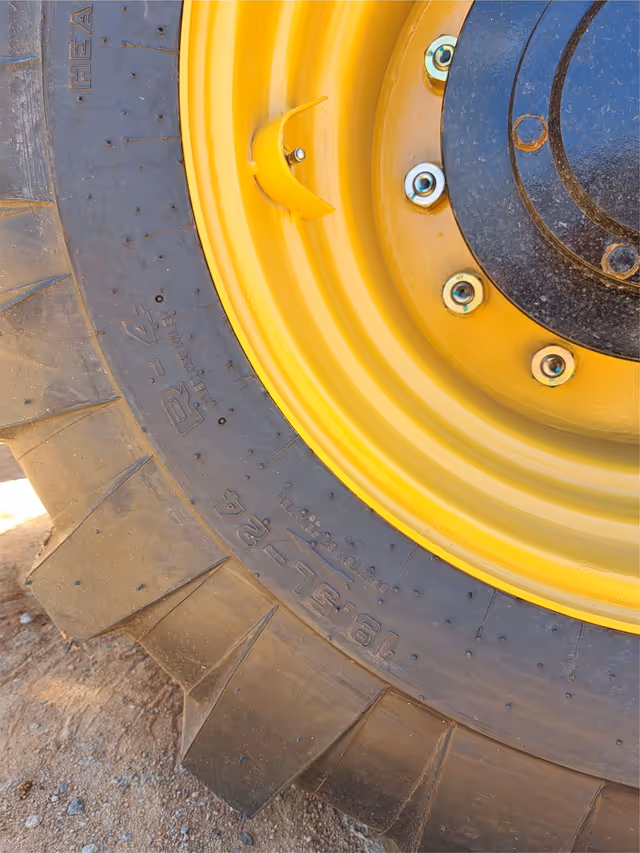

Standard Tyre Size Rear
19.5L-24
Tank Capacities

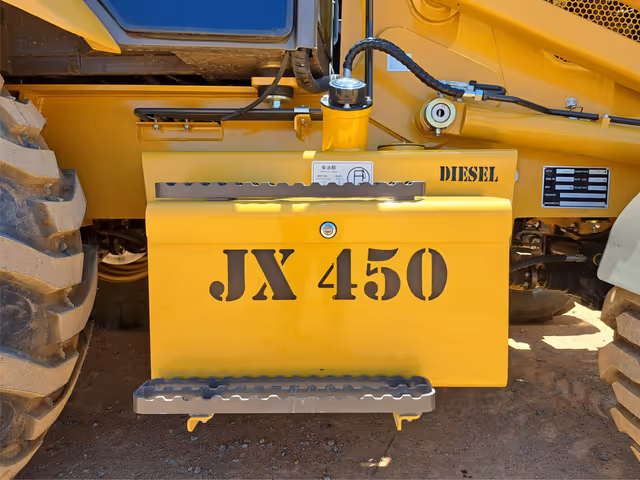

Fuel Tank
145 L

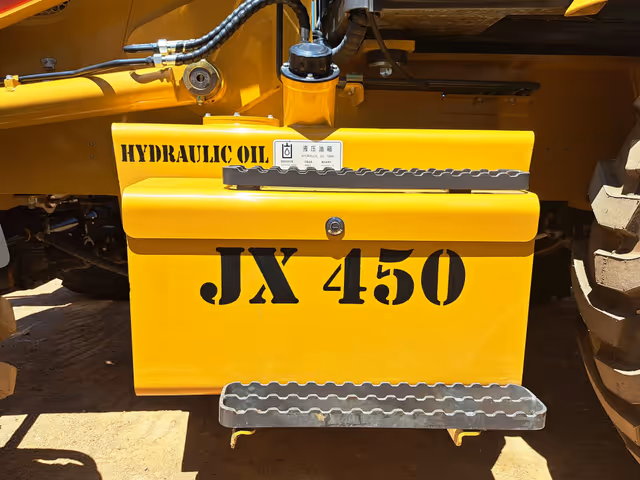

Hydraulic Oil Tank
145 L
Engine Oil
20 L
Gear Box Oil
20 L
Diff Oil
30 L
Transmission
Type
Hydraulic Torque Converter

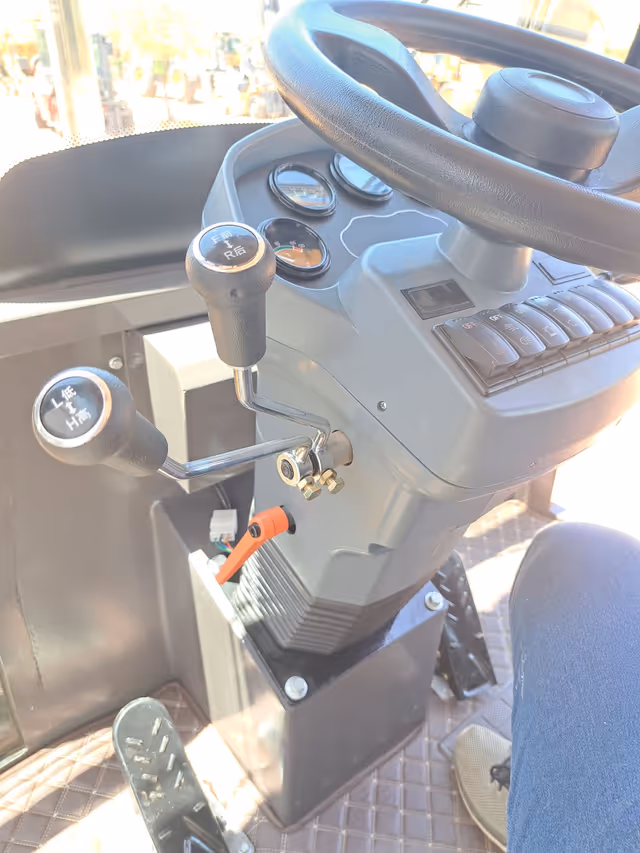

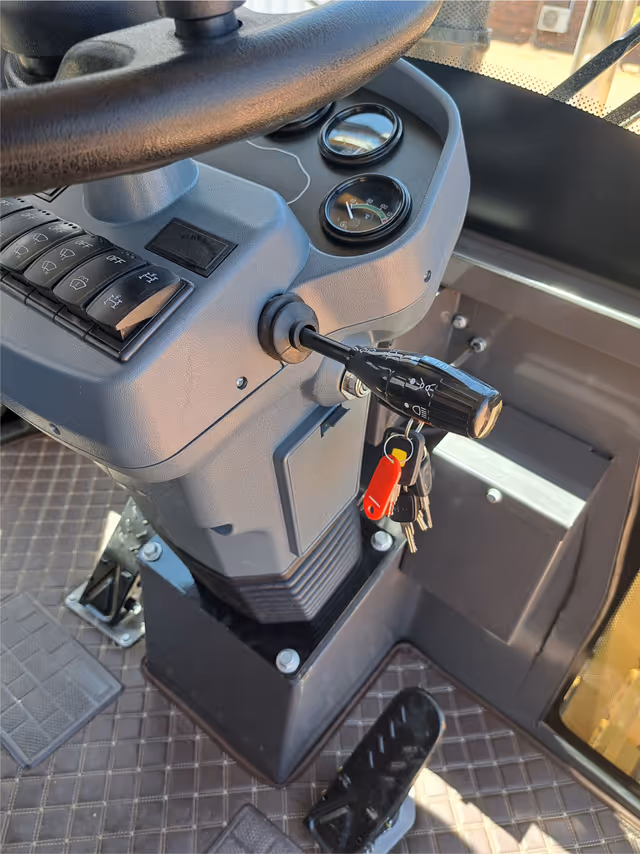

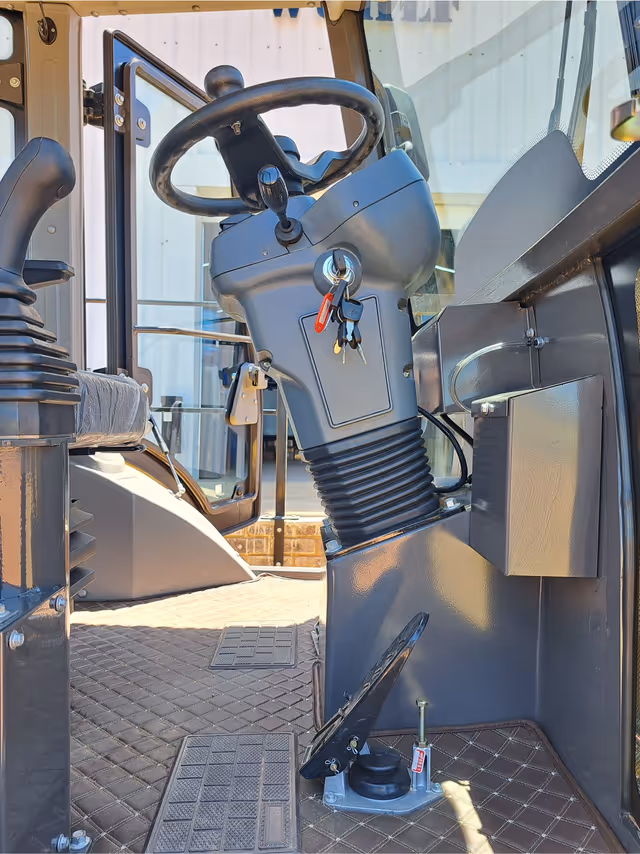

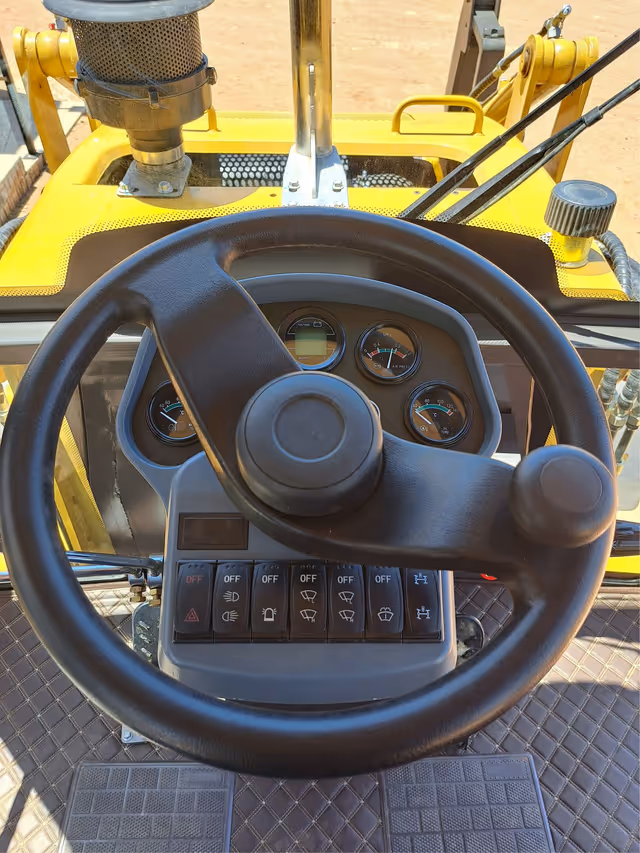

Steering
Type
Front Wheel Hydraulic Steering

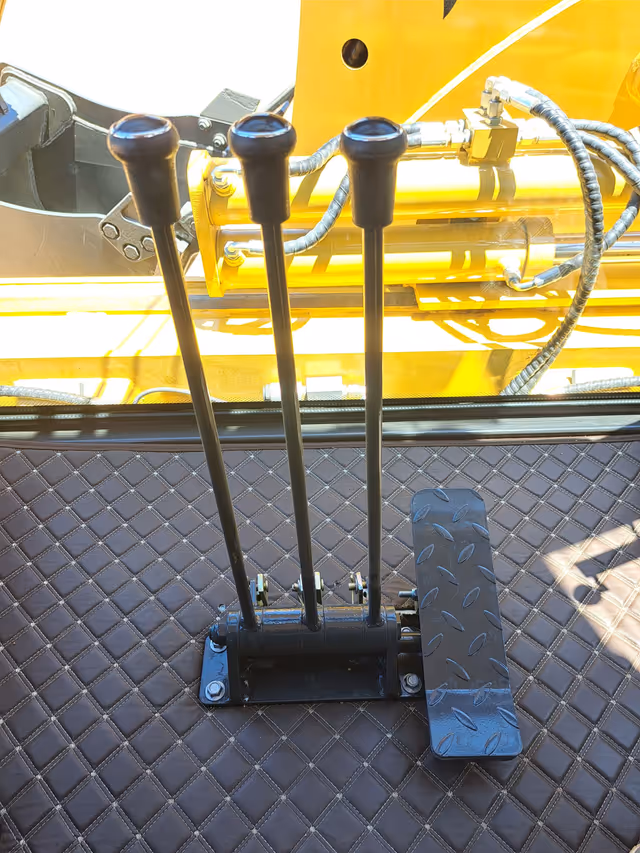

Working Hydraulics
System Type

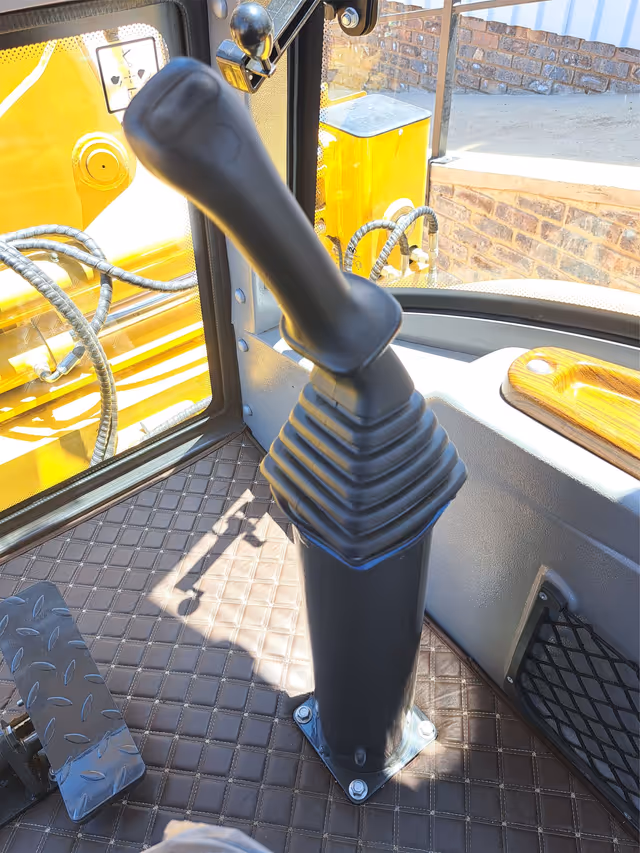

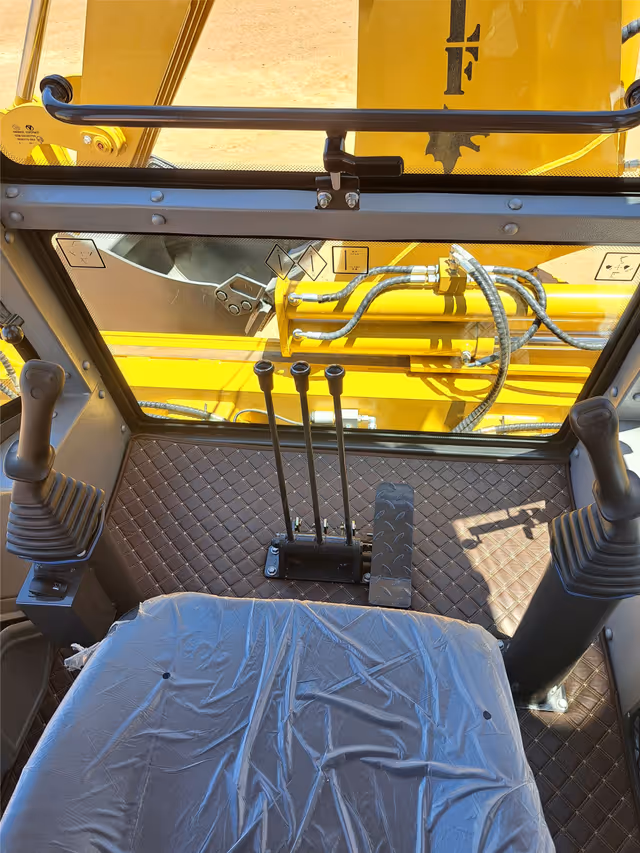

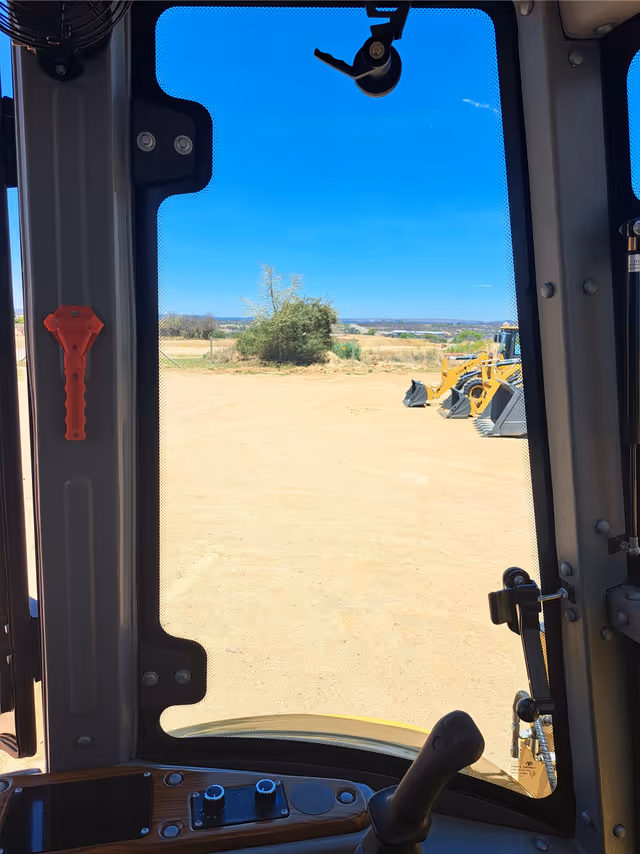

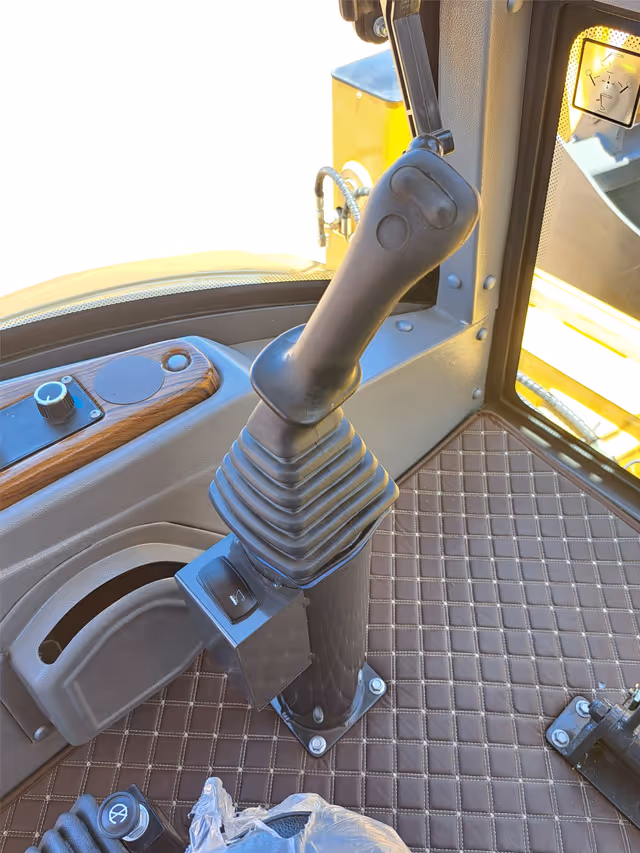

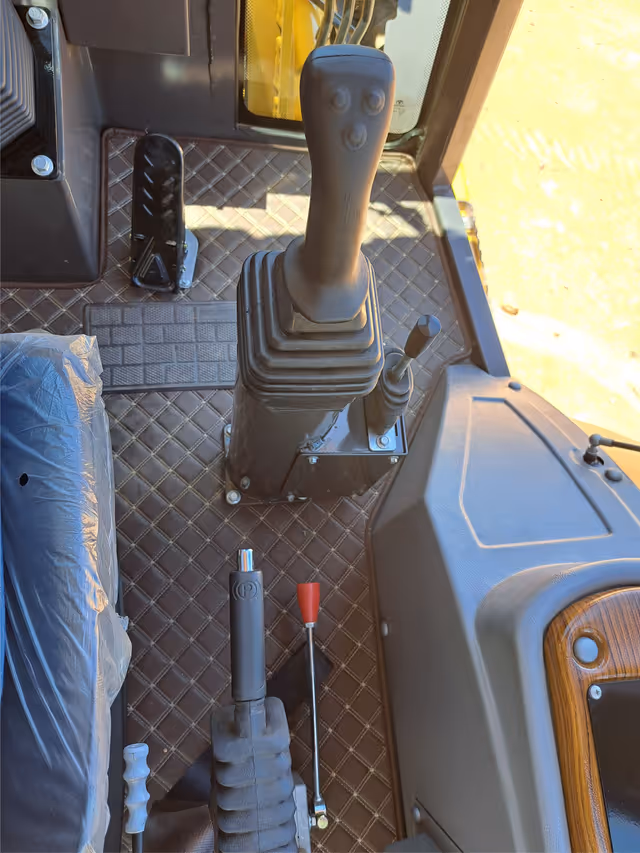

Hydraulic Joystick Control
Working System Pressure
12mpa
Bucket Delivery Time
5.4s
Brake System
Foot Brake Type
Dry Brake System
