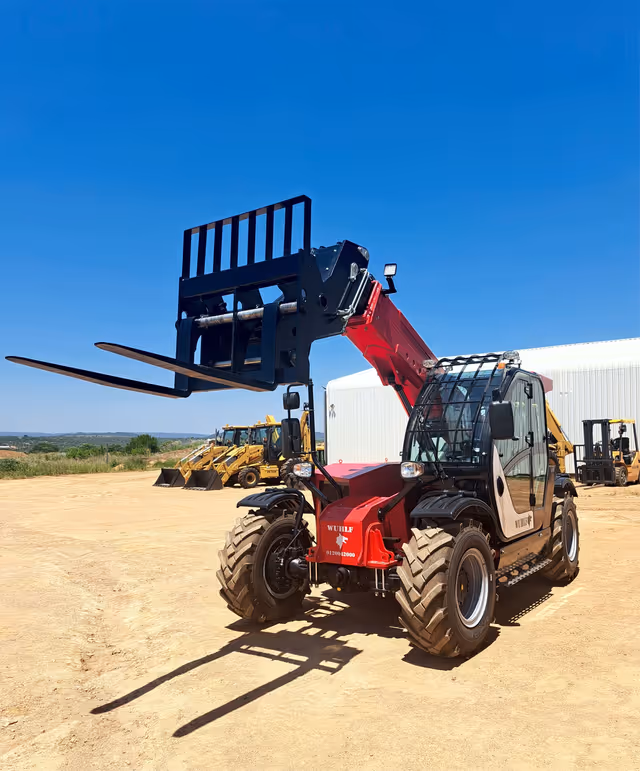

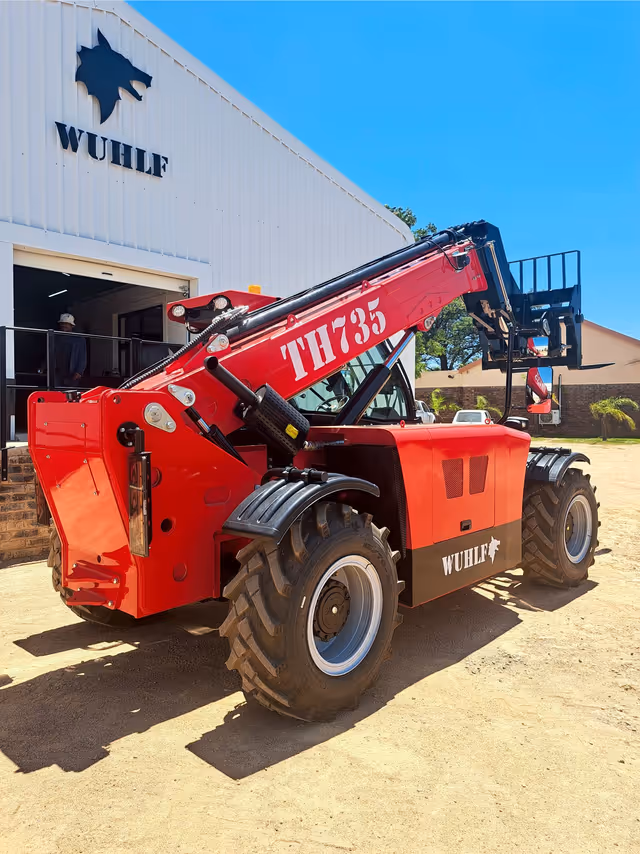

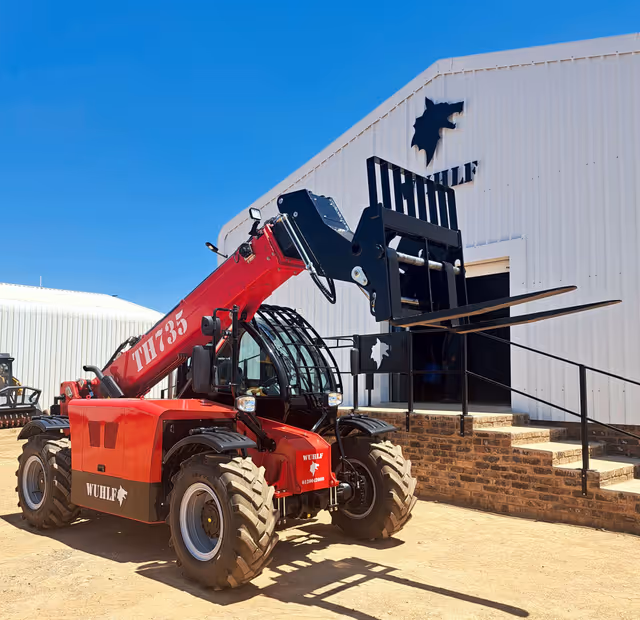

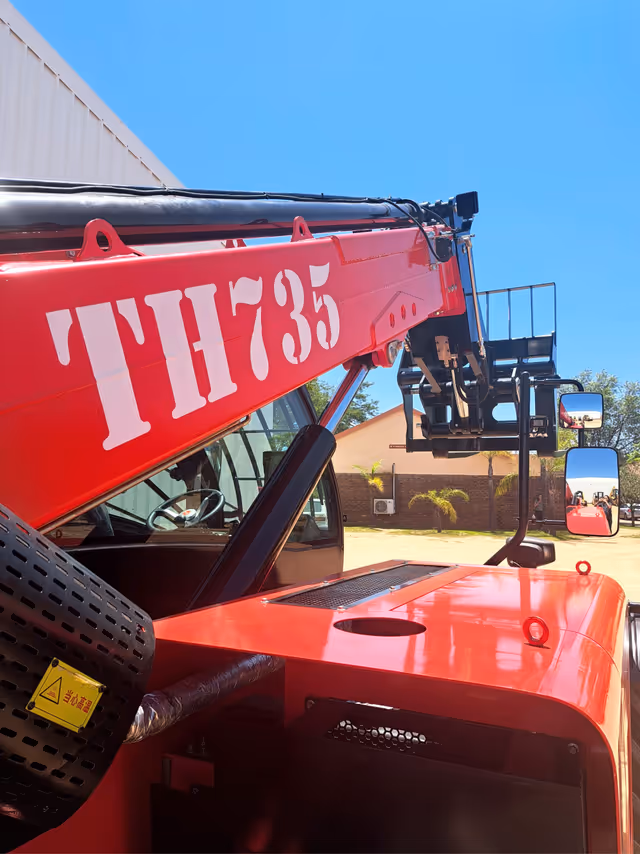

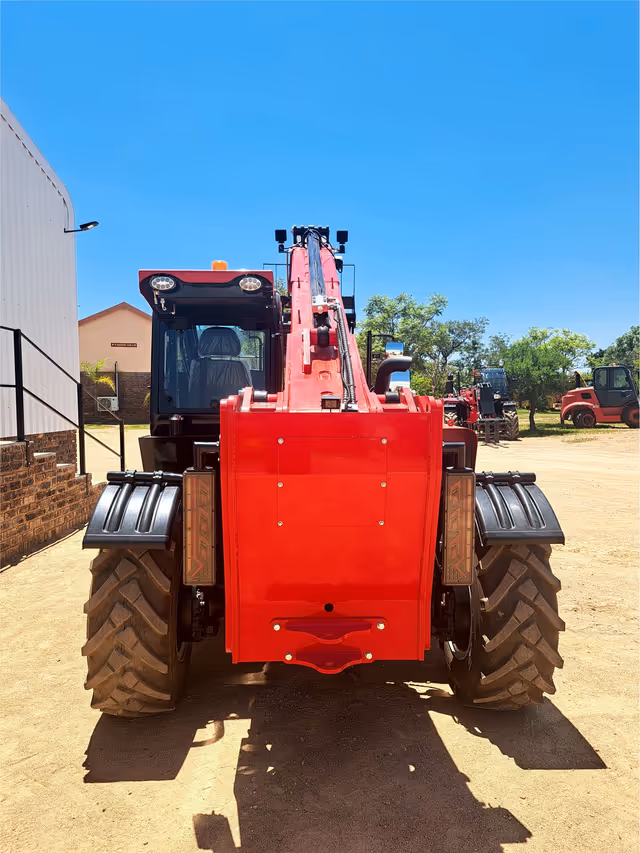

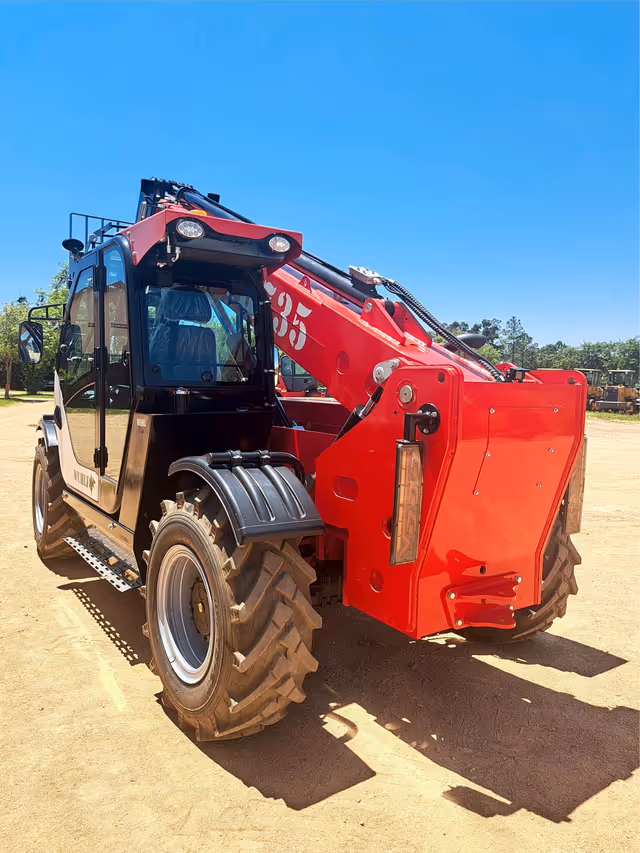

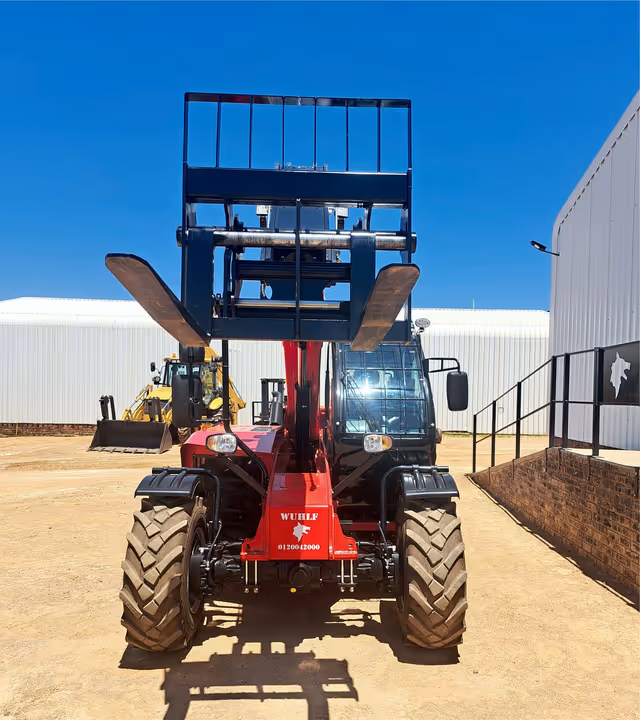

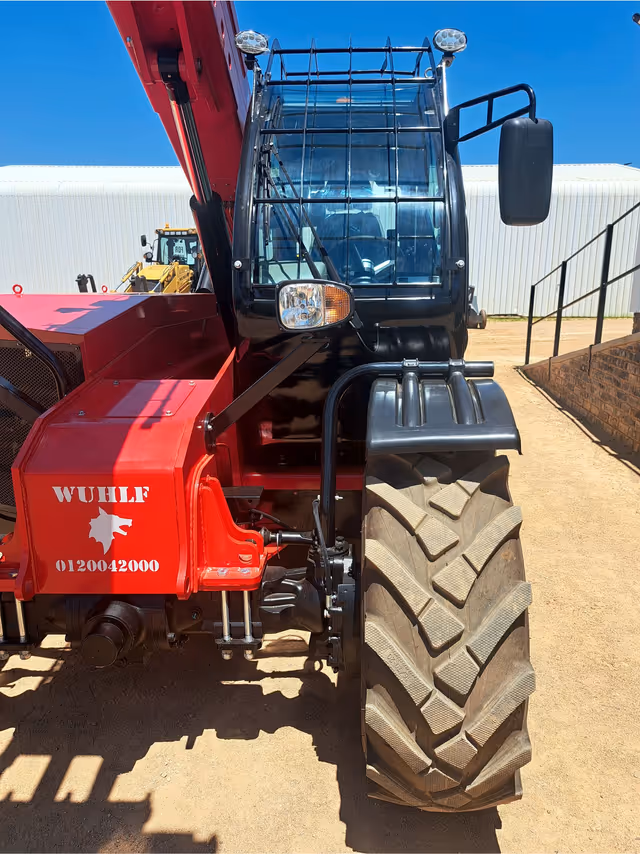

TH735 Telehandler
3.5 Ton Telehandler with 7 Meter Lifting Height
Specifications
Rated Load
3.5 Ton
Operating Weight
8 300kg

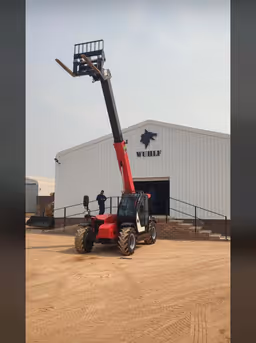

Max Lifting Height
7 000mm
Max Horizontal Boom Extension
3 380mm
Min Turning Radius
4 580mm
Max Climbing Gradient
30°
Performance
Max Brake Distance
1 000mm
Drive Type
Torque Converter
Main Boom Lifting Time
9s
Main Boom Landing Time
7s
Boom Extending Time
12s
Boom Retracting Time
8s
Traveling Speed
1st Gear (F)
5 km/h
2nd Gear (F)
10 km/h
3rd Gear (F)
18 km/h
4th Gear (F)
36 km/h
1st Gear (R)
8 km/h
2nd Gear (R)
12 km/h
3rd Gear (R)
30 km/h
Differential-Axles
Driving Type
4 wheel steering; Crab steering; Front-wheel steering
Front Axle
Rigid Axle
Rear Axle
Oscillating Axle
Brake System
Brake Type
Service air brake on the 4 wheels with double hydraulic system
Dimensions
Overall Length
5 230mm
Overall Width
2 200mm
Overall Height
2 300mm
Wheel Base
3 050mm
Wheel Track
1 700mm
Min Ground Clearance
350mm
Tyres

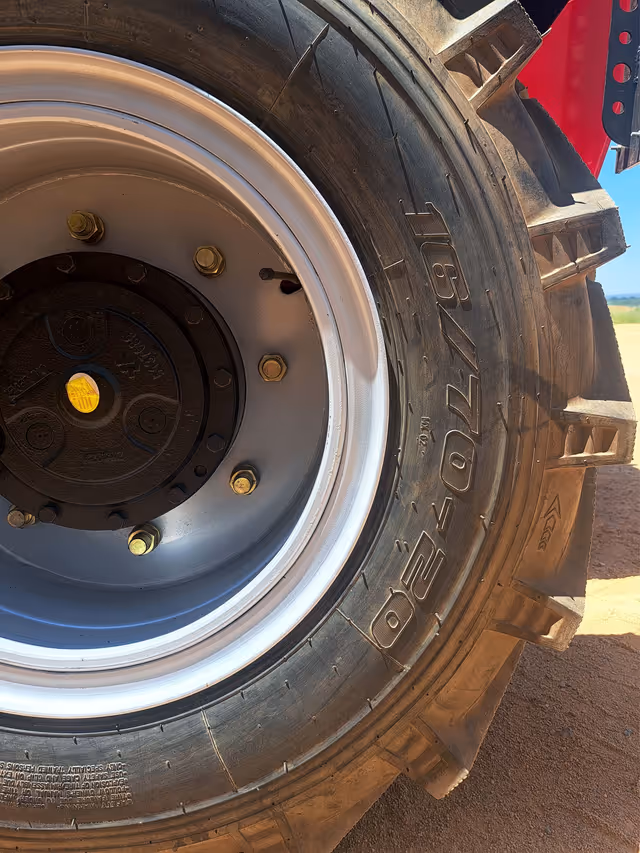

Standard Tyre Size
16/70-20
Engine
Model
Yuchai YCD4M22T-105
Rated Power
77kW

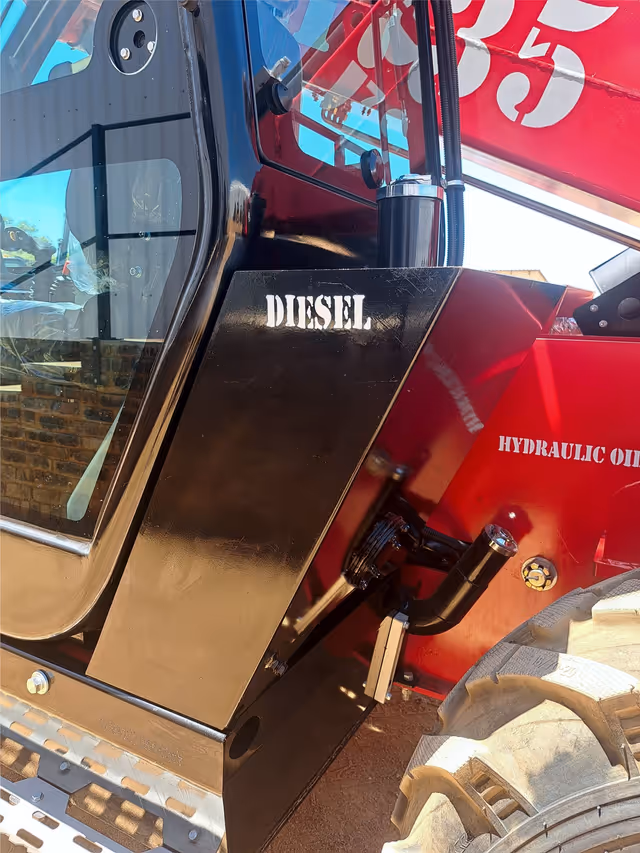

Tank Capacities
Fuel Tank
95 L

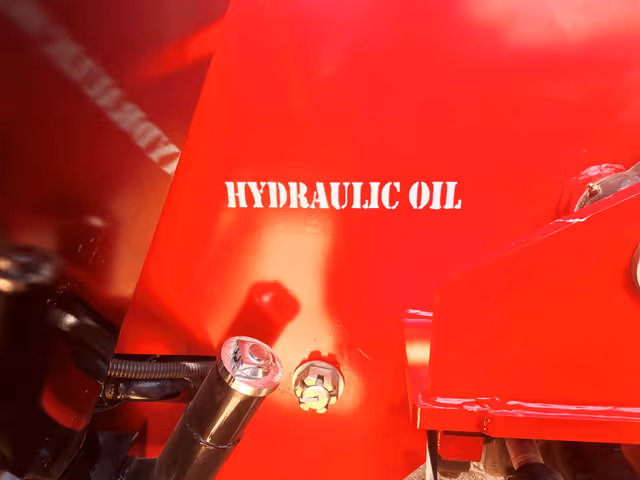

Hydraulic Oil Tank
70 L
