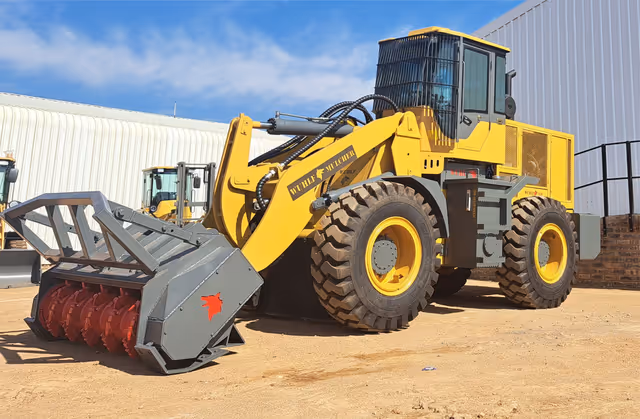

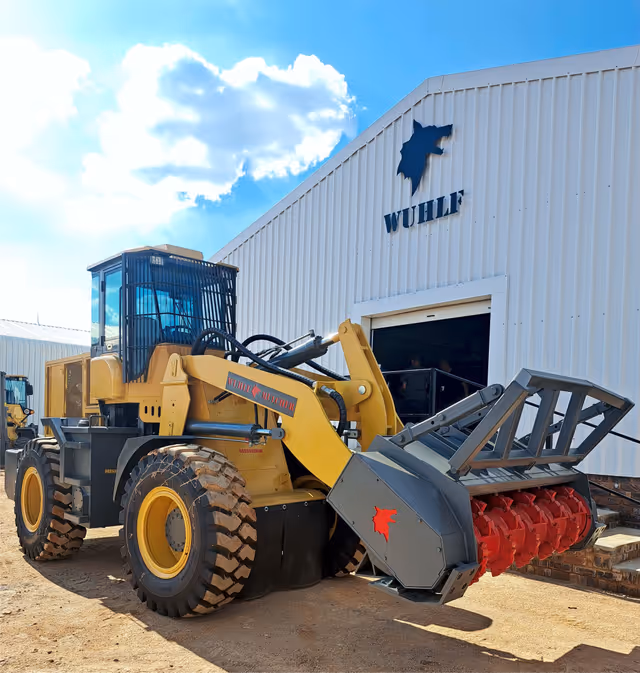

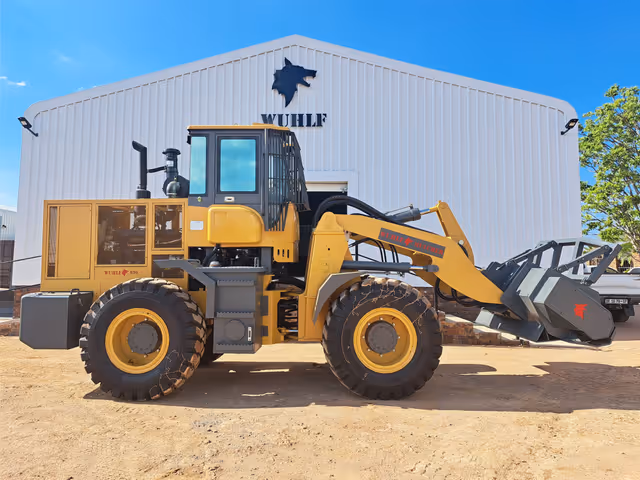

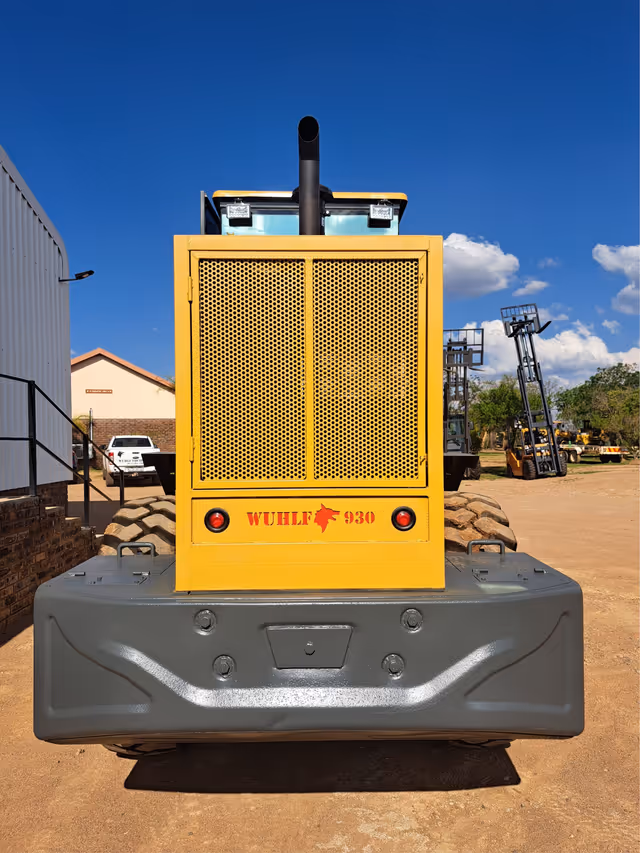

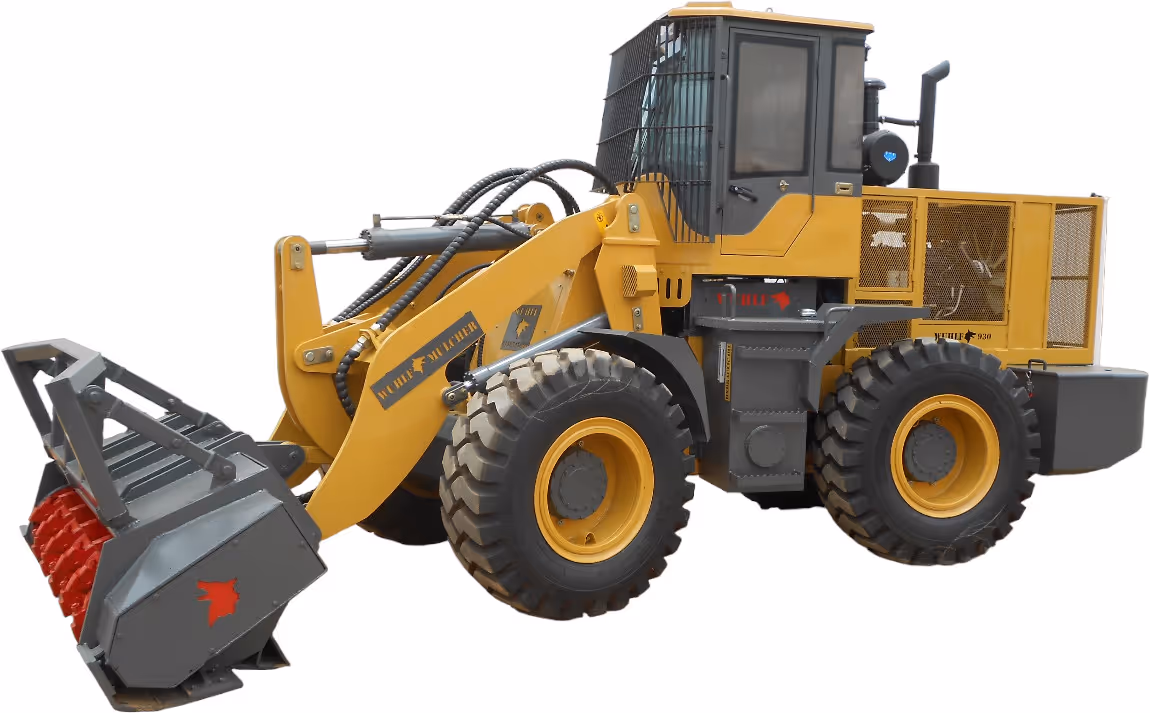

Wuhlf 930 Mulcher
129kW Mulcher
Designed and Manufactured in South Africa
General Hydraulics: Lift -Tilt - Steering
Type
40cc Gear Pump 180 bar
Hydrostatic Transmission
Type
75cc Danfoss Pump, 107cc Variable Displacement Motor, 2 Speed Transfer Case
Mulcher Hydraulics
Type
100cc Danfoss Variable Displacement Pump 350 bar, 2 x Variable Displacement Hydraulic Motors 80cc

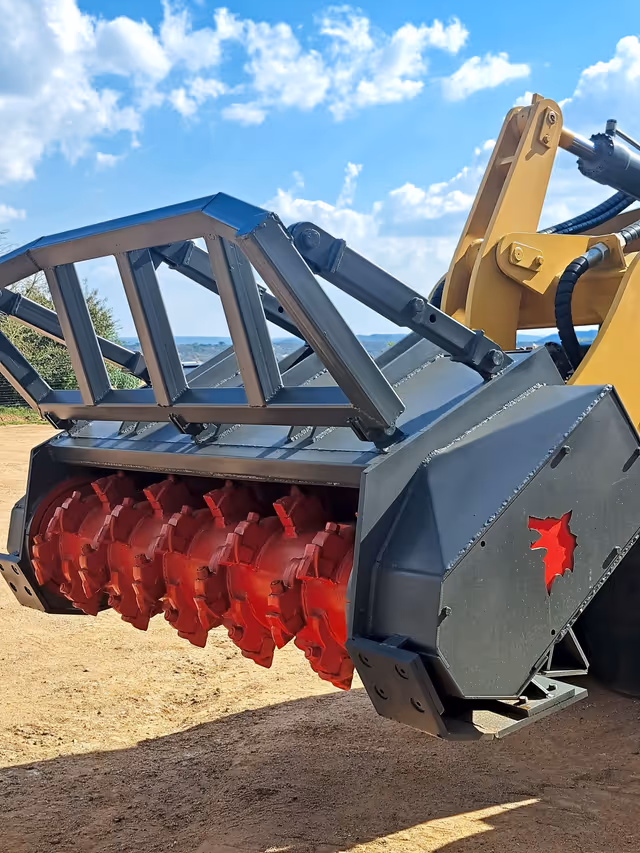

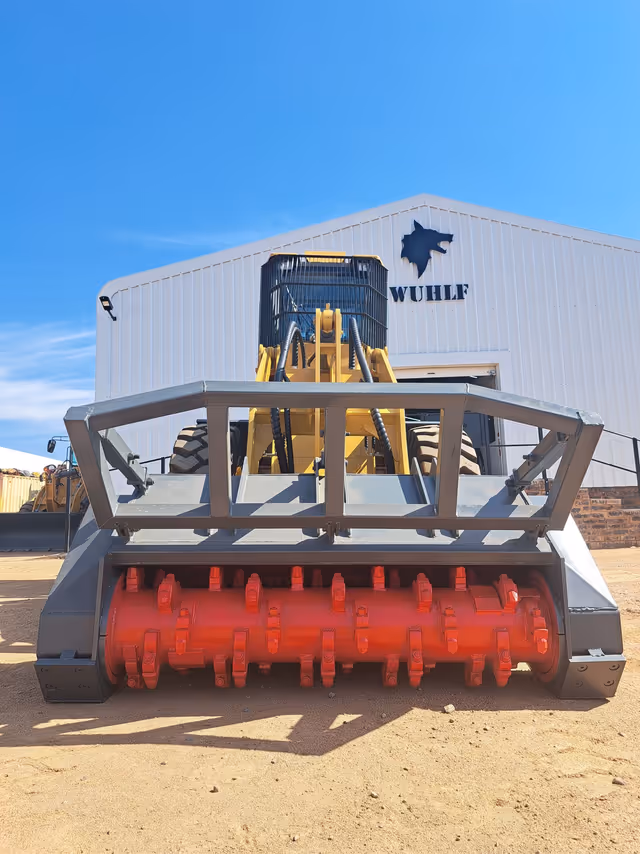

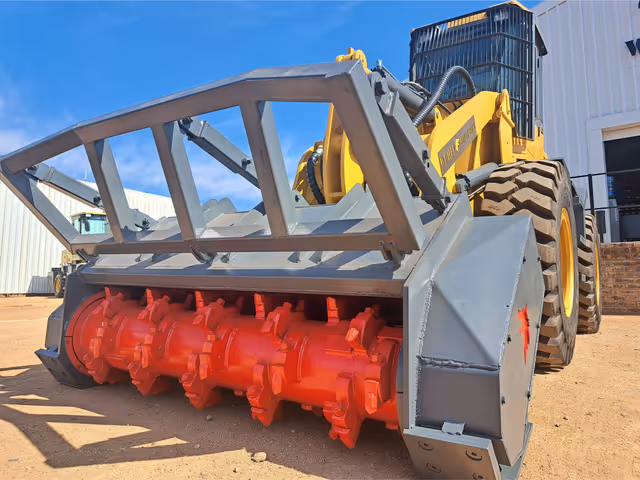

Mulcher Head
Drum Size
1 800mm
Overall Width
2 300mm
Drum Speed
2 000rpm

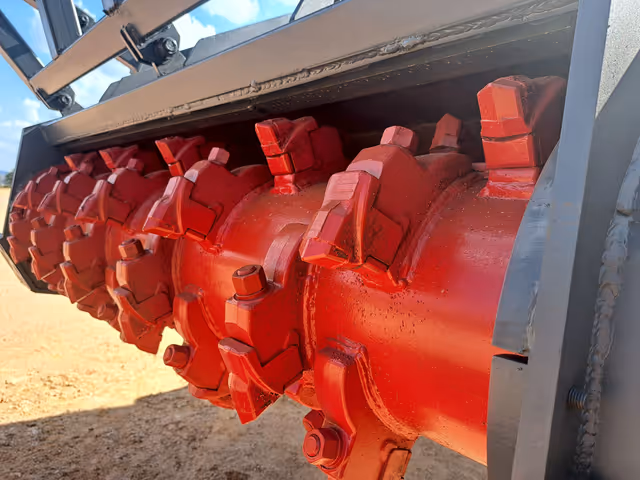

Fixed Teeth
40
Traveling Speed
1st Gear
0 - 8 km/h
2nd Gear
0 - 18 km/h
Reverse 1st
0 - 6 km/h
Reverse 2nd
0 - 14 km/h

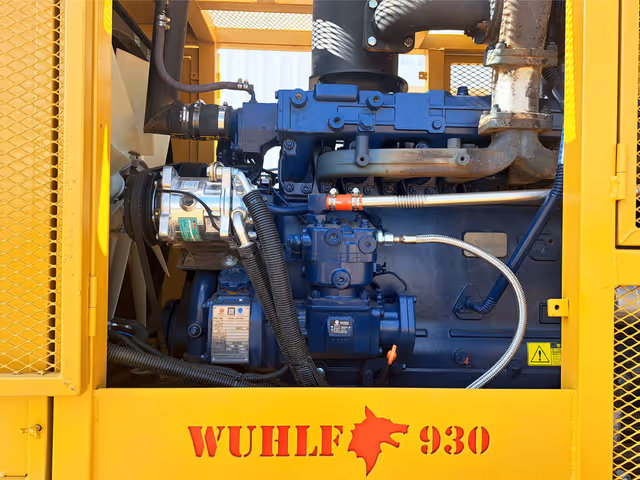

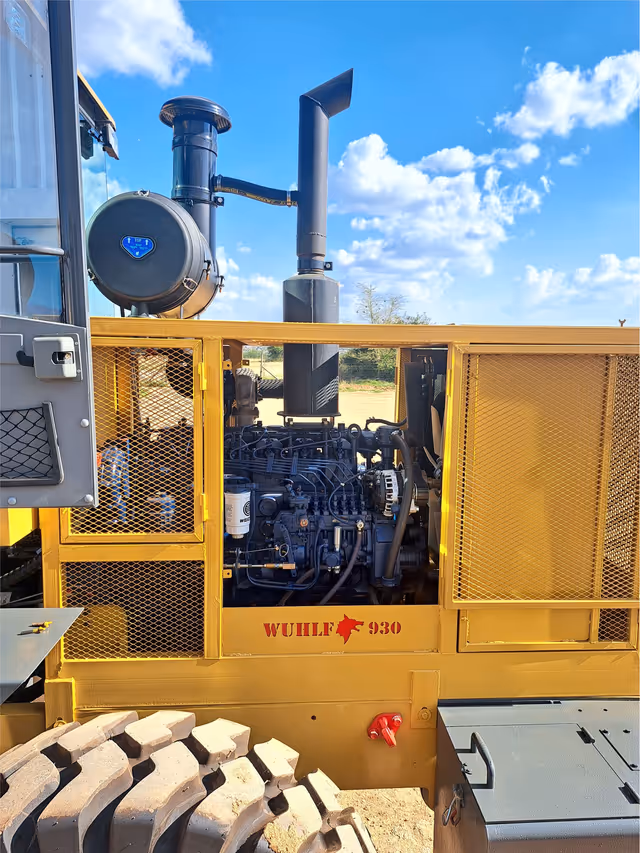

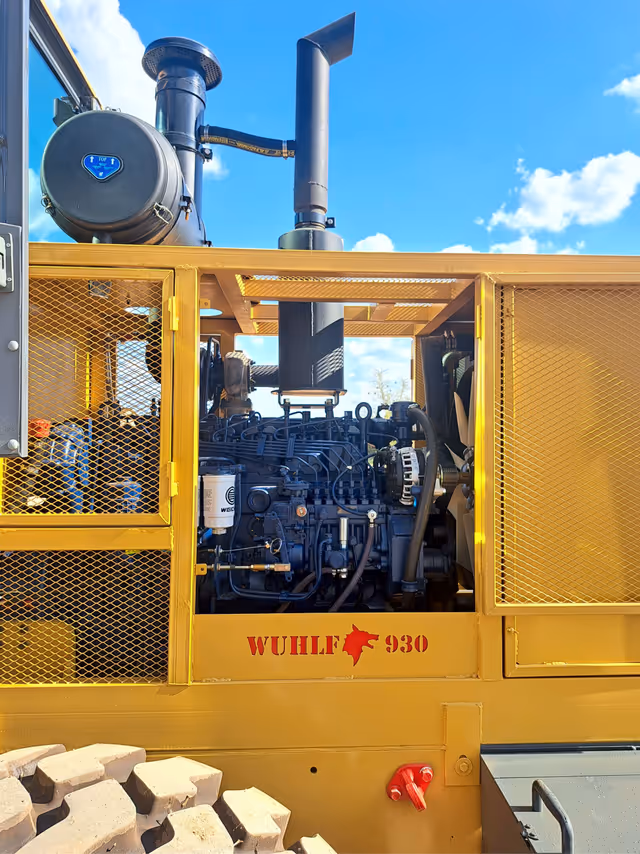

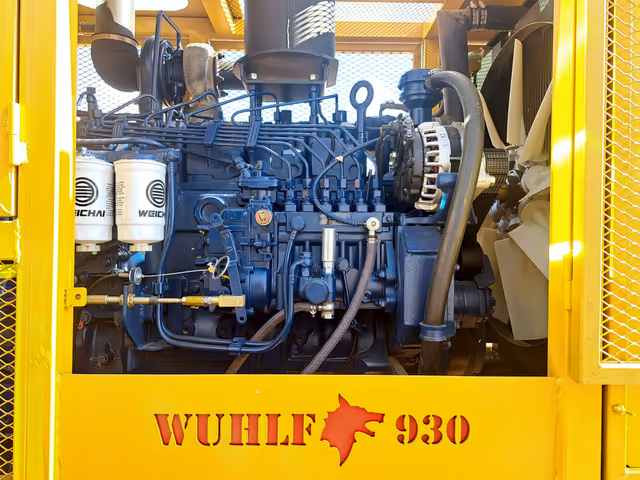

Engine
Rated Power
129kW
Rated Speed
2 000rpm
Model
WP6G175E201

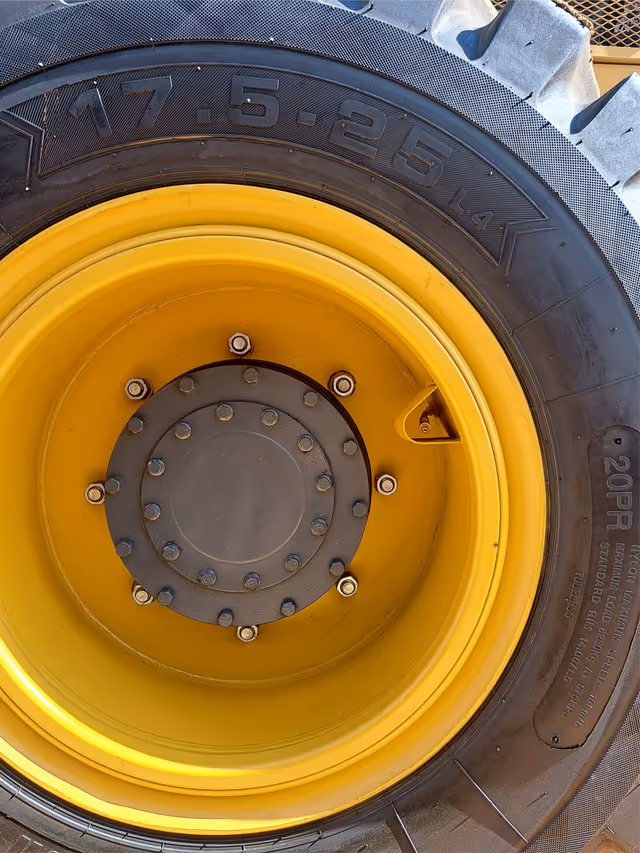

Tyres
Standard Size
17.5-25L4
Front Pressure
3.5bar
Rear Pressure
3.0bar
Tank Capacities

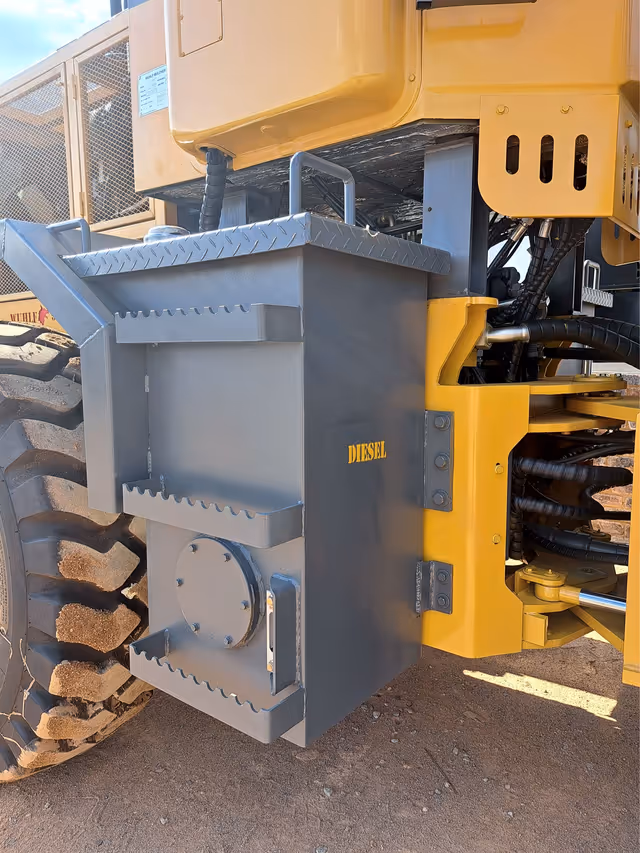

Fuel Tank
200 L

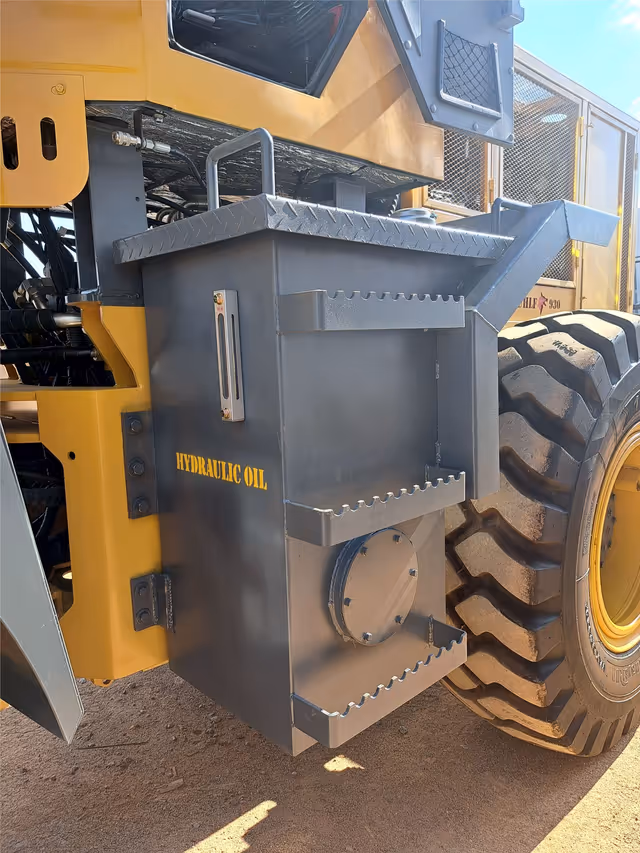

Hydraulic Oil Tank
200 L
Engine Oil
20 L
Gear Box
45 L
Axle and Final Reducer
28 L
Brake System
4 L
Articulation
Type
Full Hydraulic Articulated Frame Steering
Articulation
30°
Brake System
Brake Type
Air Over Hydraulic Disk Brakes
Machine Dimensions
Overall Length
6 600 mm
Overall Width
2 300 mm
Overall Height
3 420 mm
Wheel Base
2 625 mm
Min Ground Clearance
460 mm
Operating Weight
8 000kg
Specifications
Max Climbing Gradient
30°
