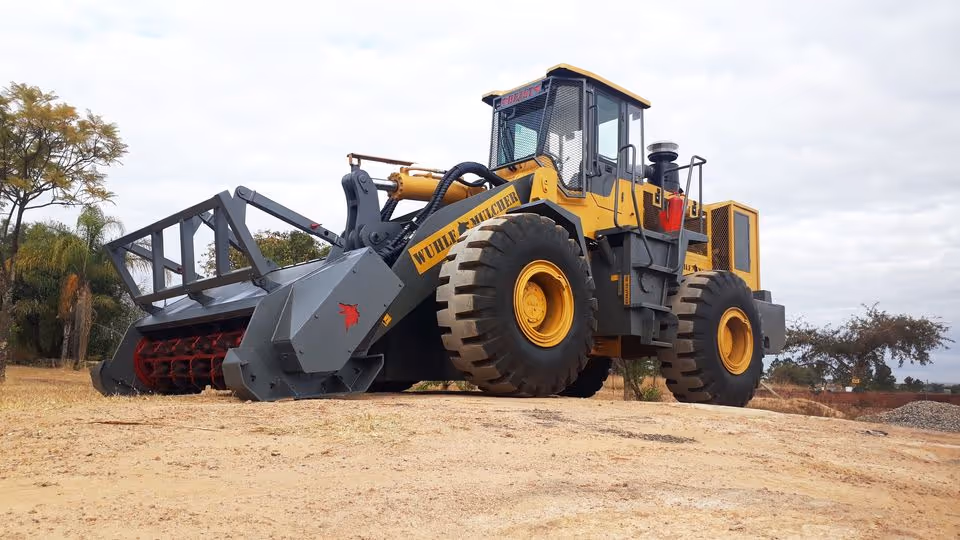

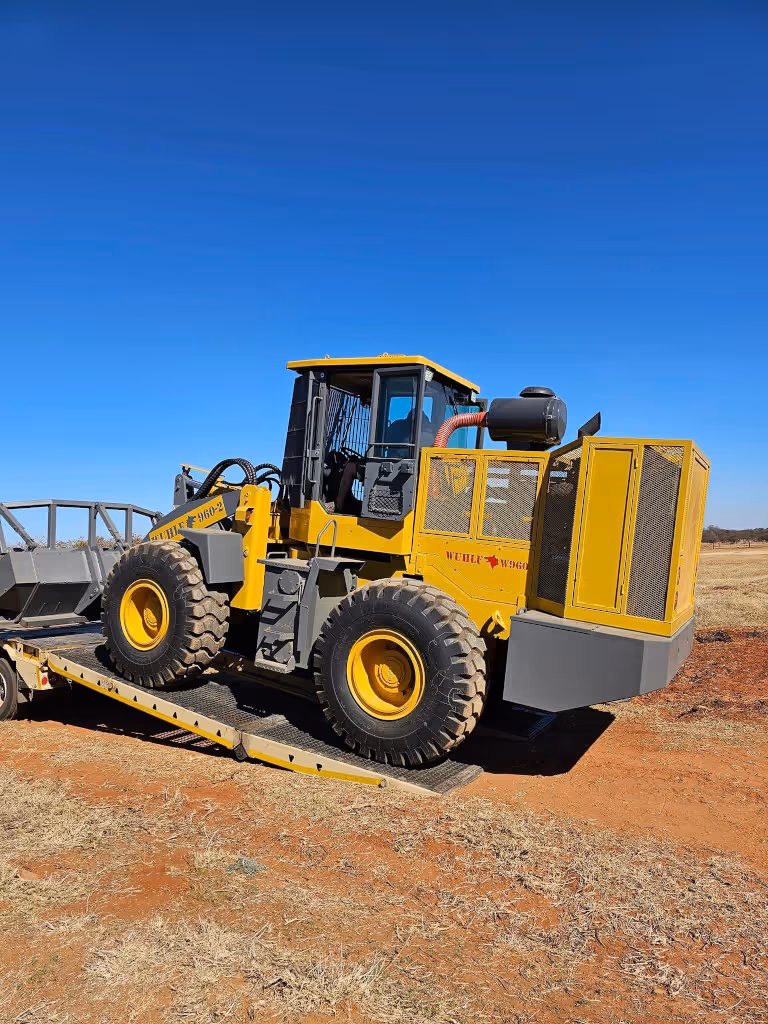

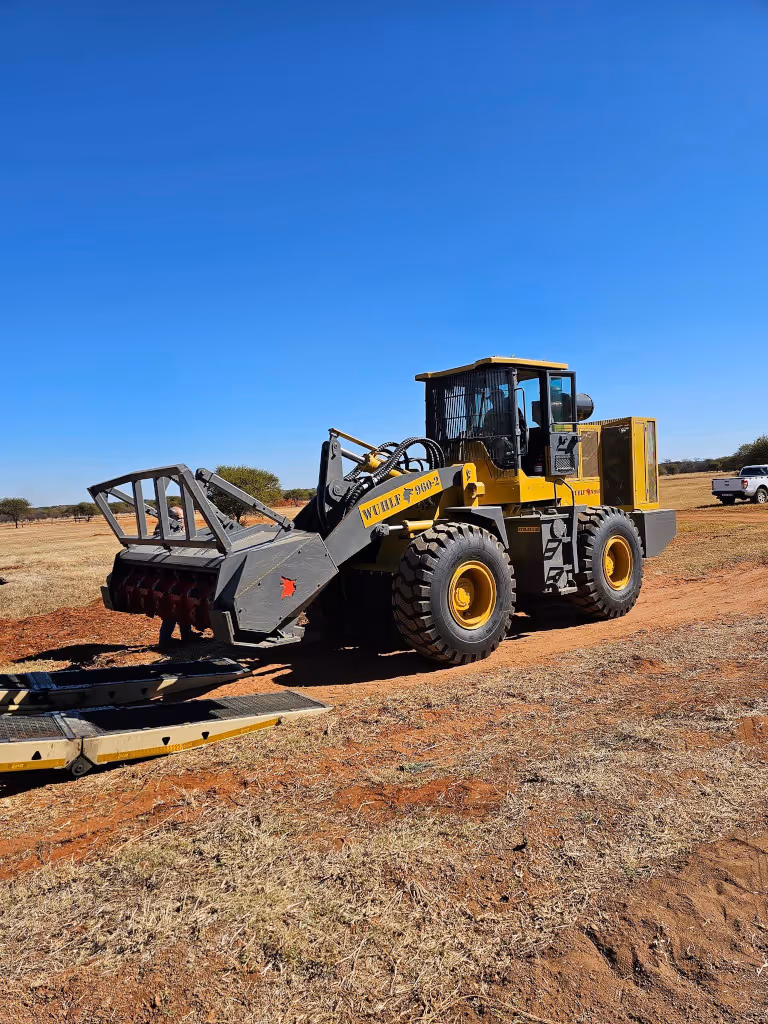

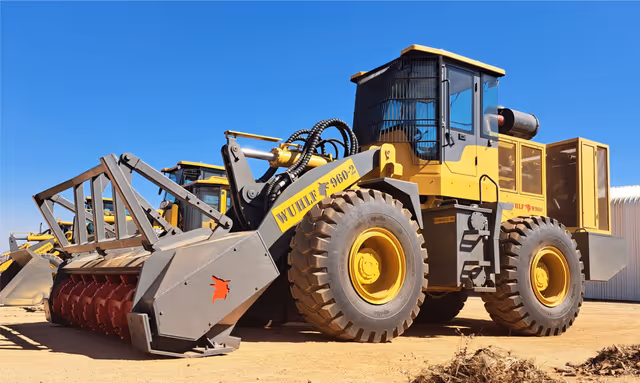

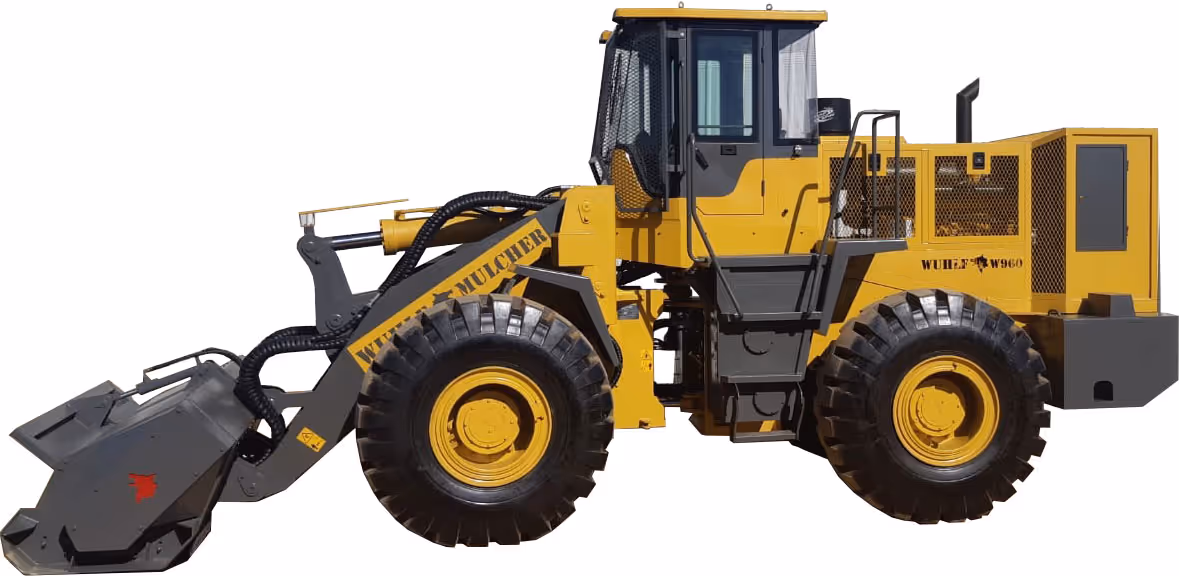

Wuhlf 960-2 Mulcher
276kW Mulcher
Designed and Manufactured in South Africa
General Hydraulics: Lift - Tilt - Steering
Type
80cc Gear Pump 180 bar
Hydrostatic Transmission
Type
100cc Danfoss Pump, Variable Displacement Motor, 2 Speed Transfer Case
Mulcher Hydraulics
Type
250cc Danfoss Variable Displacement Pump 350 bar, 2 x Variable Displacement Motor 160cc
Mulcher Head
Drum Size
2 500mm
Overall Width
3 050mm
Drum Speed
2 000rpm
Fixed Teeth
48
Traveling Speed
1st Gear
0 - 15 km/h
2nd Gear
0 - 38 km/h
Reverse
0 - 27 km/h
Engine
Rated Power
276kW
Rated Speed
2 200rpm
Model
WD12G375E211
Cooling System
Radiator
Tropical Core
Radiator
Hydraulic Driven with Automatic Reversing Cycle
Tyres
Standard Size
20.5-25
Front
0.343mpa
Pressure
0.294mpa
Tank Capacities
Fuel Tank
280 L
Hydraulic Oil Tank
280 L
Engine Oil
30 L
Gear Box
45 L
Axle and Final Reducer
30 L each
Brake System
4 L
Articulation
Type
Full Hydraulic Articulated Frame Steering
Brake System
Brake Type
Air Over Hydraulic Disc Brakes
Machine Dimensions
Overall Length
7 600mm
Overall Width
3 030mm
Overall Height
3 550mm
Wheel Base
2 830mm
Min Ground Clearance
510mm
Operating Weight
13 500kg
Specifications
Max Climbing Gradient
30°
