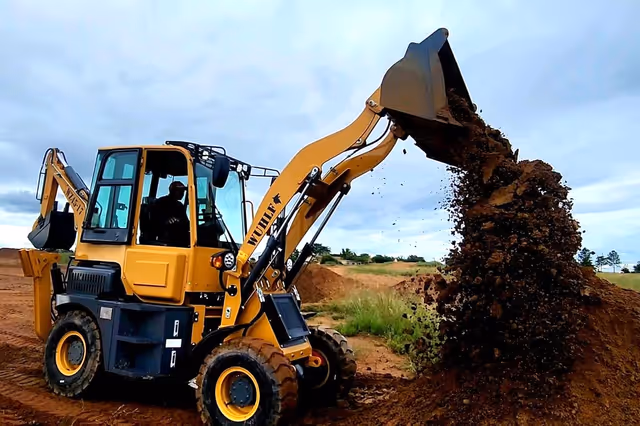

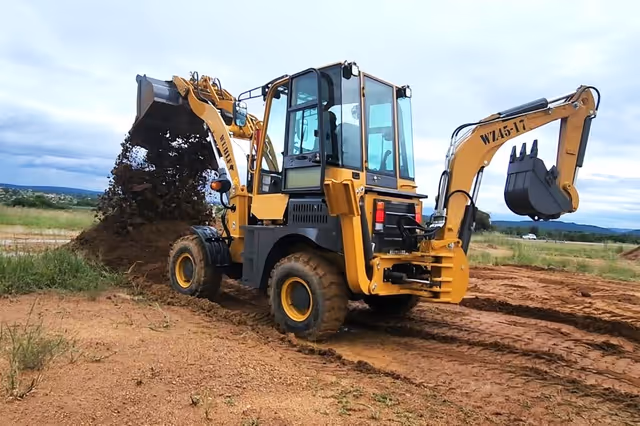

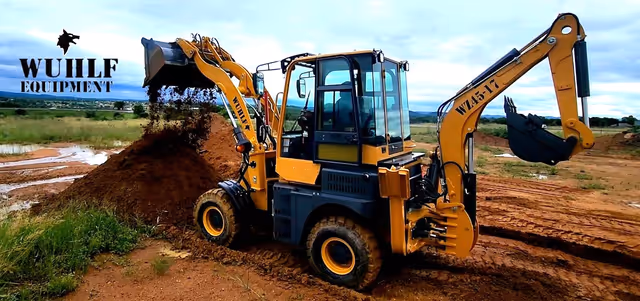

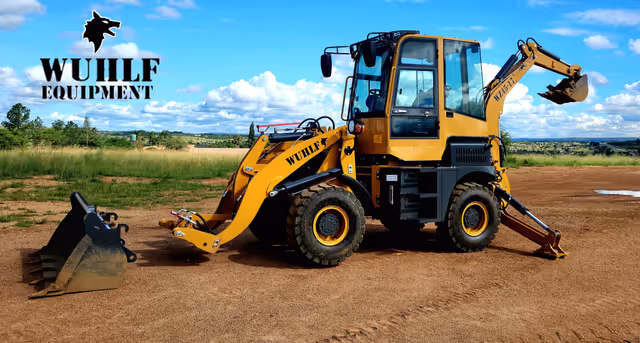

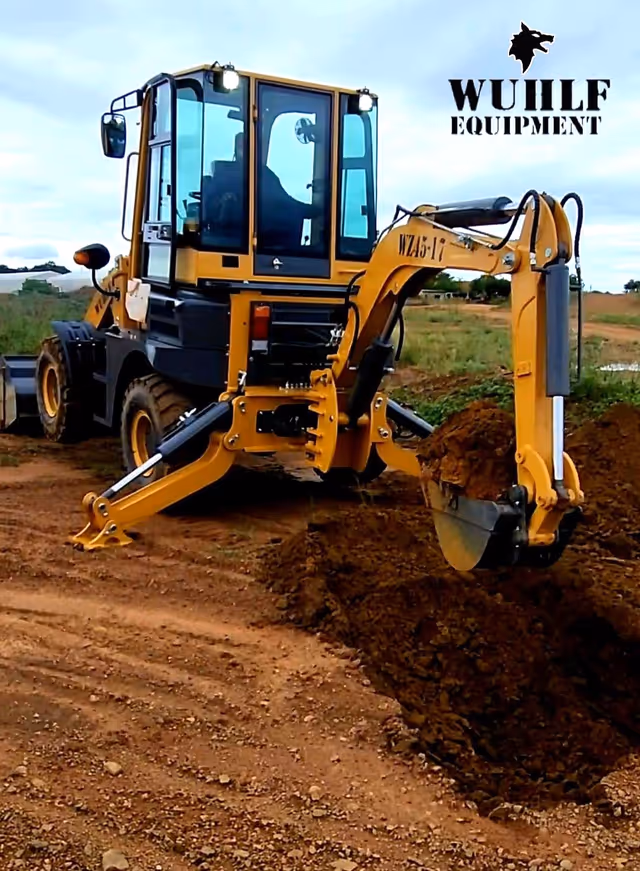

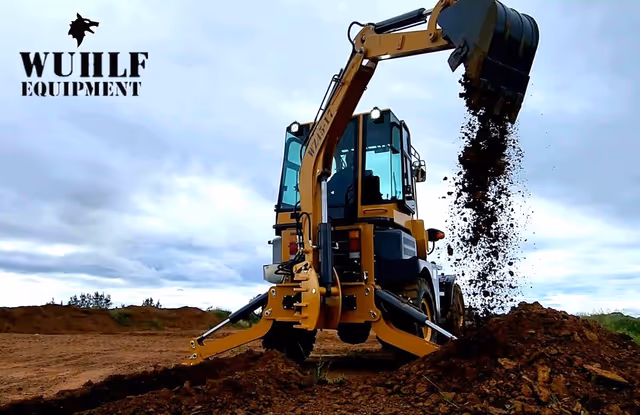

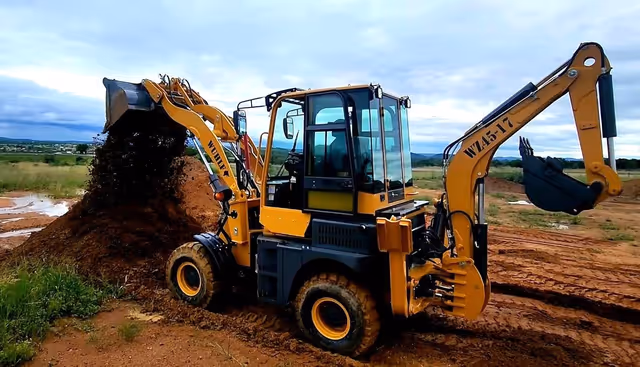

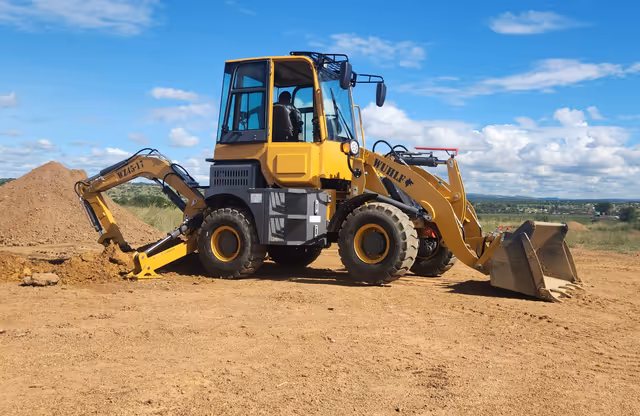

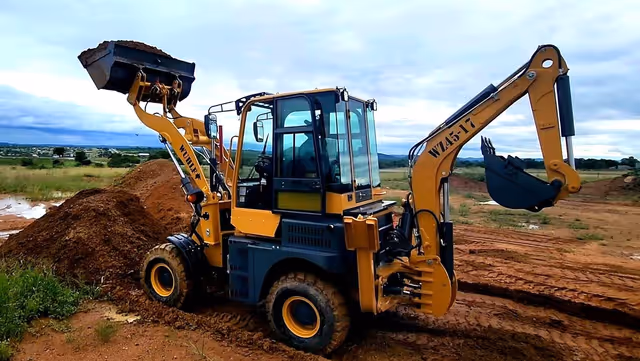

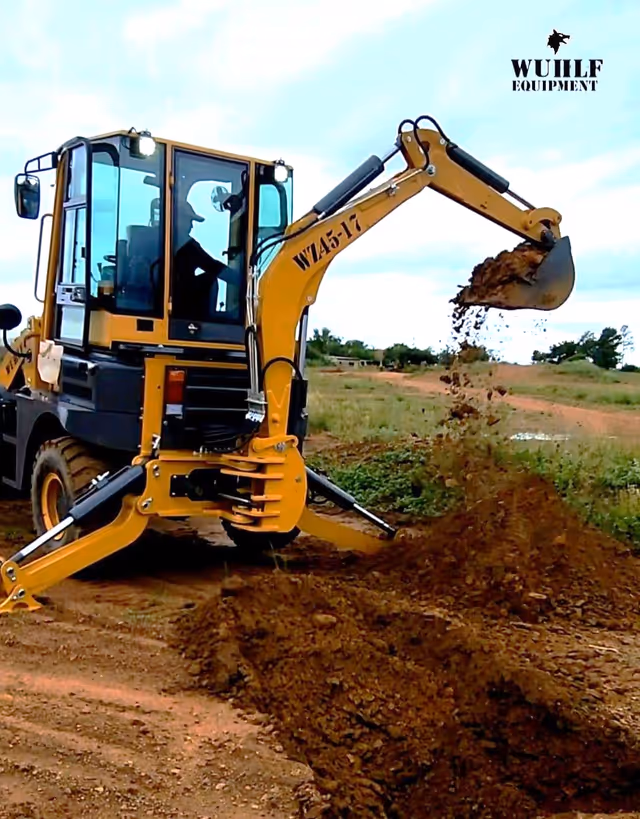

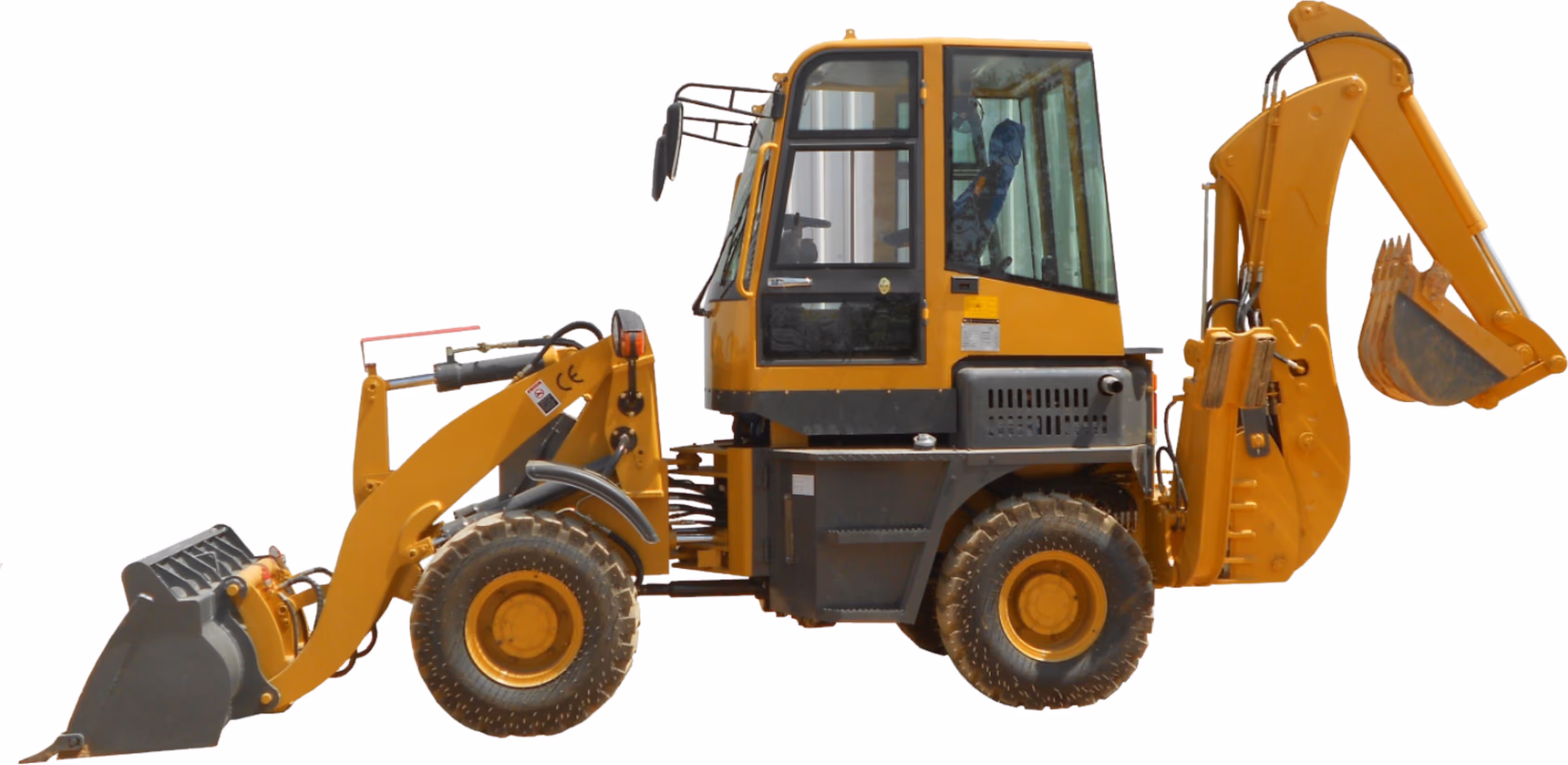

WZ45-17 TLB
Dimensions
Overall Length
6 230mm
Overall Height
2 760mm
Overall Height Backhoe
3 000mm
Wheel Base
2 070mm
Loader Bucket Width
1 780mm
Max Dumping Clearance
2 450mm
Max Dumping Height
3 000mm
Dumping Reach
930mm
Machine Specifications
Operating Weight
5 200kg
Max Speed
18 km/h
Tyre Size
20.5 / 70-16
Max Climbing Gradient
30°
Engine
Engine Model
YN27
Rated Power
42kw
Specifications Backhoe Parameter
Bucket Capacity
0.2m³
Backhoe Bucket Width
400mm
Raising Height
3 700mm
Max Digging Depth
3 000mm
Max Digging Distance
4 000mm
Turning Angle of Backhoe
160°
Landing Legs Up Width
2 250mm
Specifications Loading Parameter
Dump Height
3 000mm
Min Turning Radius
4 800mm
Dumping Reach
930mm
Rated Loading Weight
1 600kg
Bucket Capacity
0.6m³
Dump Clearance
2 450mm
Wheel Base
2 070mm
Bucket Width
1 780mm
