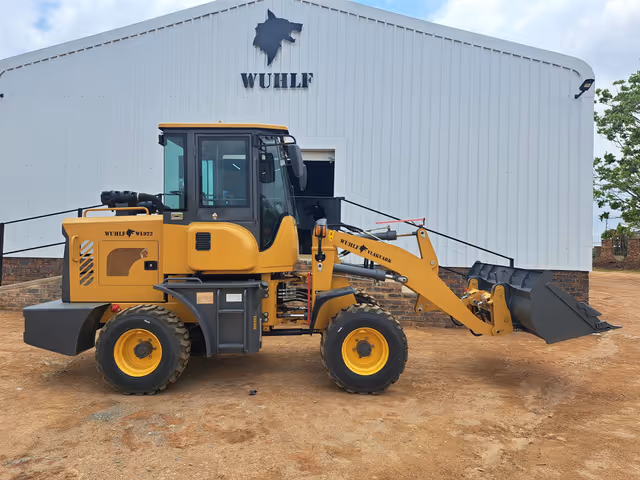

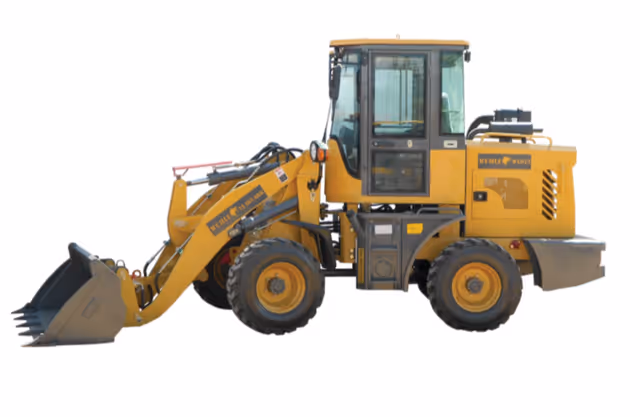

ZA14 Vlakvark
1.4 Ton Front End Loader
Dimensions
Overall Length
5 200mm
Overall Width
1 750mm
Overall Height
2 700mm
Wheel Base
1 975mm
Min Ground Clearance
220mm
Max Dumping Clearance
2 630mm
Max Dumping Height
3 150mm
Dumping Reach
900mm
Specifications
Bucket Capacity
0.5m³
Raising Time
5.4s
Rated Load
1.4 Ton
Max Breaking Force
36kn
Max Climbing Gradient
30°
Min Turn Radius
3 300mm
Traveling Speed
Low Gear
0 - 6 km/h
High Gear
0 - 14 km/h
Reverse Low
0 - 6 km/h
Reverse High
0 - 14 km/h

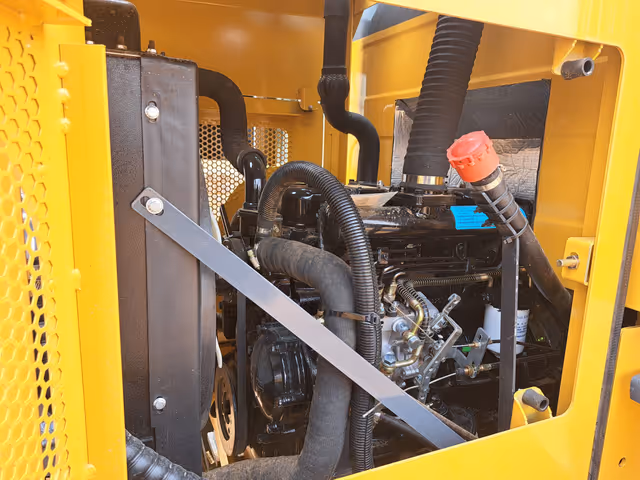

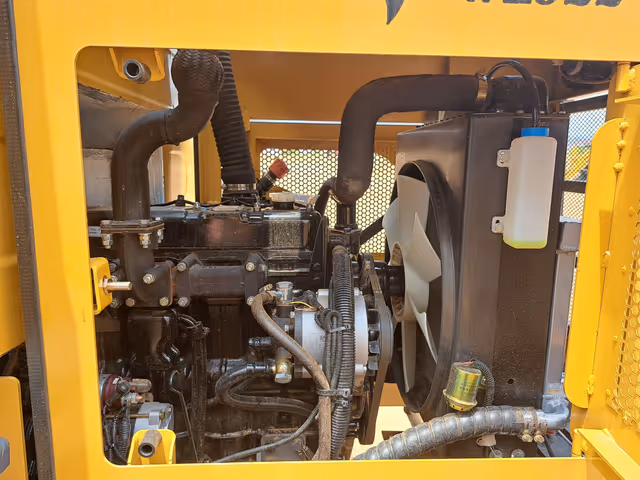

Engine
Rated Power
39kW
Rated Speed
2 400rpm
Model
ZN490B

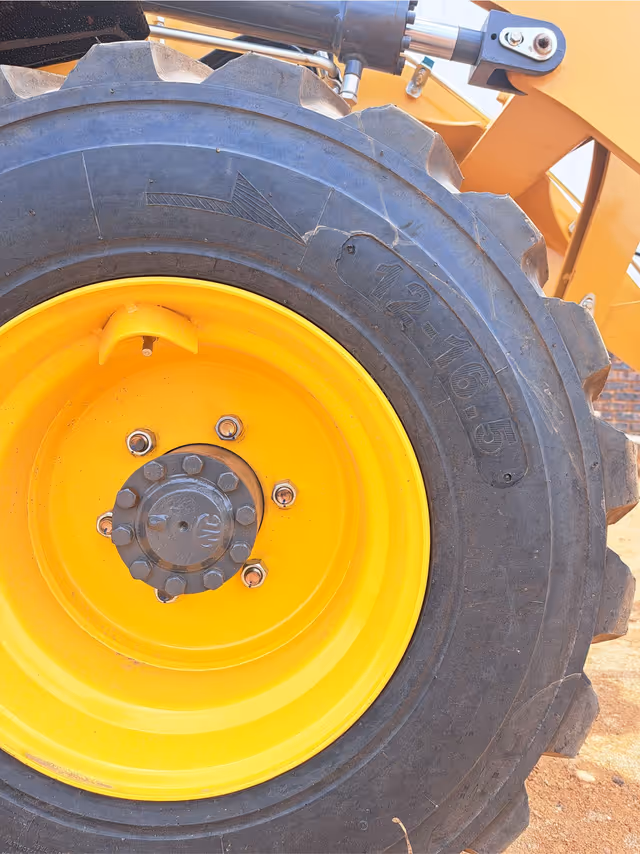

Tyres
Standard Tyre Size
12-16.5
Front Pressure
0.343mpa
Rear Pressure
0.294mpa
Tank Capacities
Fuel Tank
60 L
Hydraulic Oil Tank
42 L
Engine Oil
8 L
Gear Box
12 L
Axle and Final Reducer
5 L
Brake System
4 L
Transmission
Type
Torque Converter Powershift
Articulation
Type
Full Hydraulic Articulated Frame Steering
Steering Angle
35°
Working Hydraulics
System Type
Open Mode Controlling
Working System Pressure
16mpa
Bucket Delivery Time
1.1s
Brake System
Brake Pressure
0.45 - 0.68 mpa
