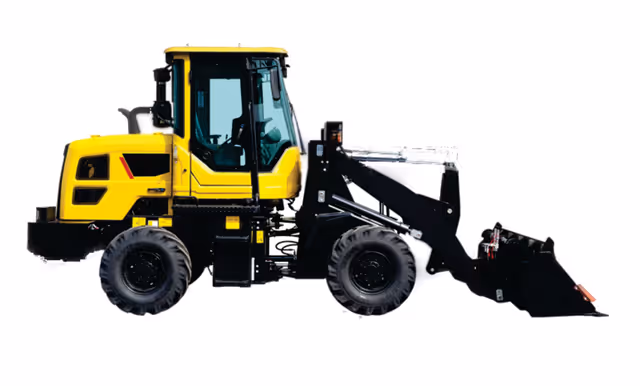

ZA16
1.6 Ton Front End Loader
Dimensions
Overall Length
5 730mm
Overall Width
1 830mm
Overall Height
2 730mm
Wheel Base
2 260mm
Min Ground Clearance
210mm
Max Dumping Height
3 200mm
Max Lifting Height
3 890mm
Max Dumping Distance
1 050mm
Specifications
Operating Weight
3 800kg
Rated Load
1.6 Ton
Bucket Capacity
0.8m³
Lifting Time
4s
Min Turn Radius
5 000mm
Max Climbing Gradient
30°
Engine
Type
4cyl Diesel
Rated Power
42kW
Model
Yunnei 490
Tyres
Standard Tyre Size
20.5/70-16
Transmission
Type
265 Integral H/L Speed
Articulation
Type
Full Hydraulic Articulated Steering Frame
Working Hydraulics
Lifting Time
4s
Falling Time
3s
Total Cycling Time
10s
Brake System
Operating Type
Mechanical Single Joystick
Brake Booster Pump
Two-Way Air Brake
