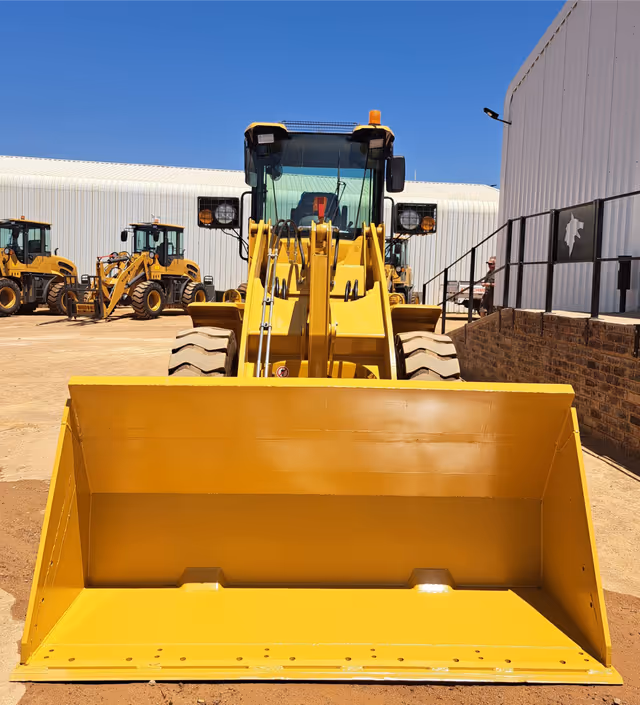

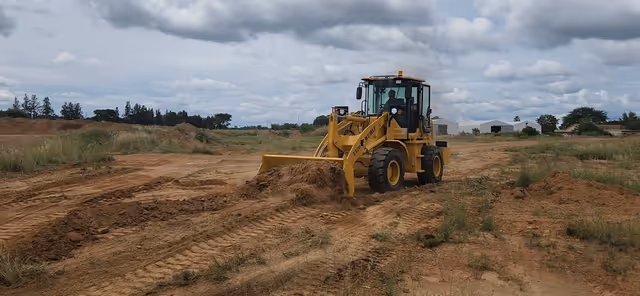

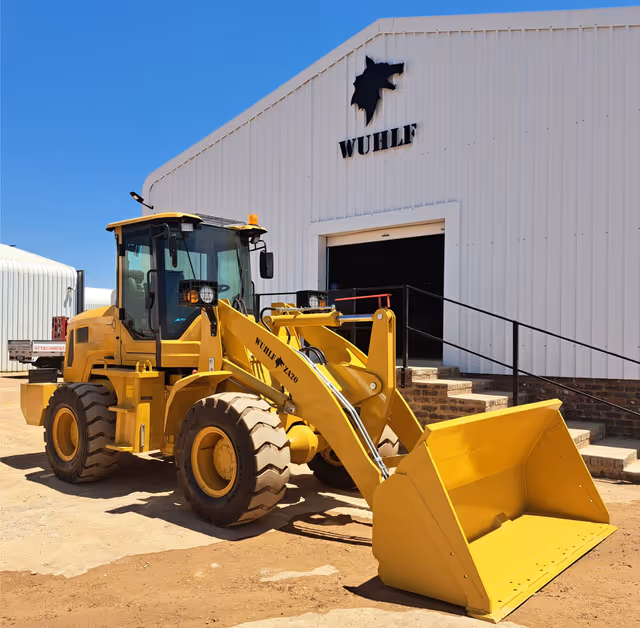

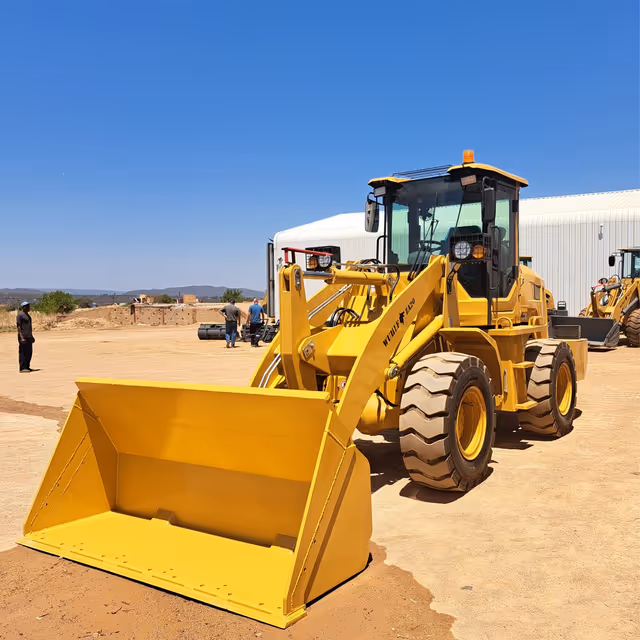

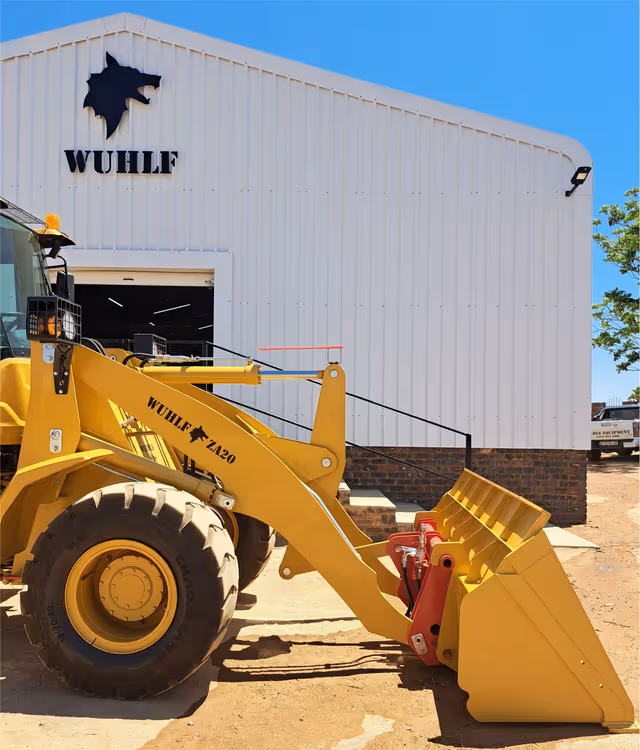

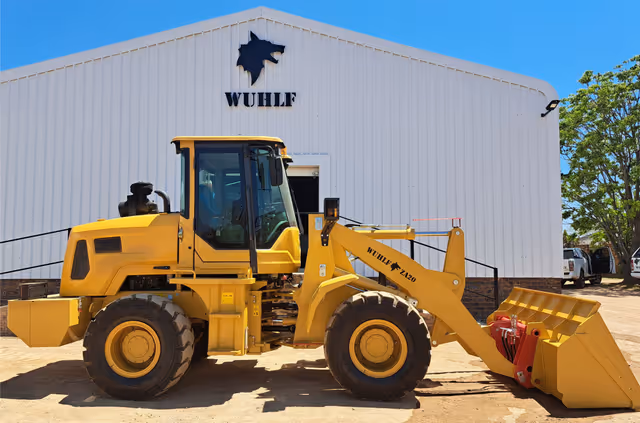

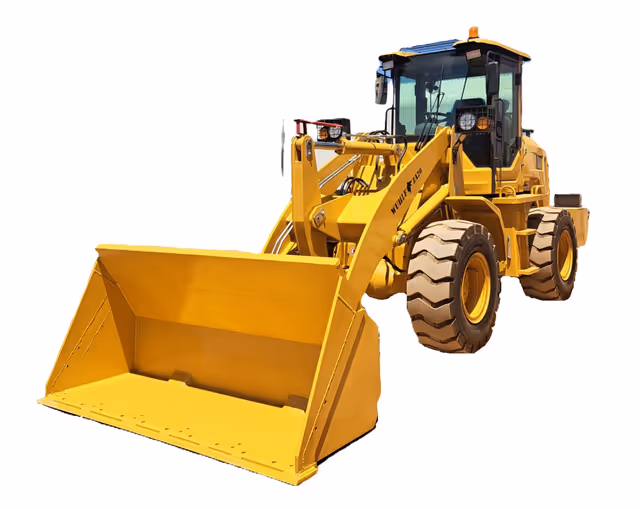

ZA20
2 Ton Front End Loader
Dimensions
Overall Length
6 580mm
Overall Width
1 990mm
Overall Height
2 860mm
Wheel Base
2 520mm
Min Ground Clearance
330mm
Max Dumping Height
3 480mm
Max Lifting Height
4 480mm
Max Dumping Distance
1 050mm
Specifications
Operating Weight
5 150kg
Rated Load
2.0 Ton
Bucket Capacity
1.0m³
Lifting Time
4s
Min Turn Radius
5 000mm
Max Climbing Gradient
30°

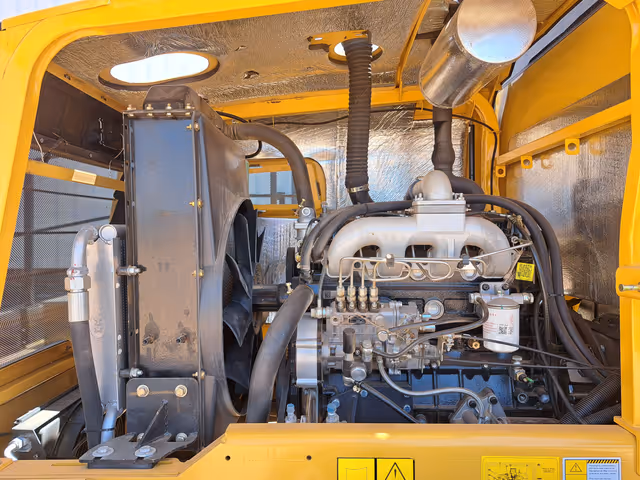

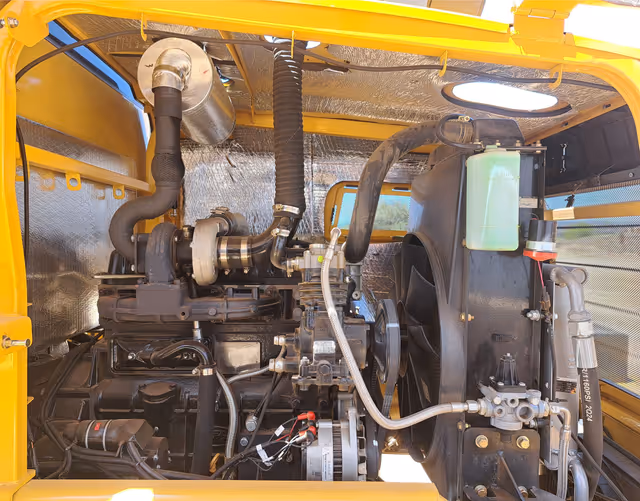

Engine
Type
4cyl Diesel
Rated Power
76kW
Model
Yunnei 4102 Turbo
Tyres
Standard Size
16/70-20

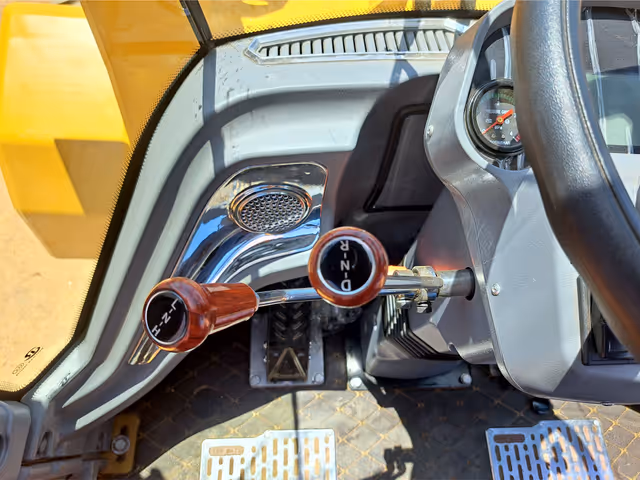

Transmission
Type
265 Integral H/L Speed
Articulation
Type
Full Hydraulic Articulated Steering Frame

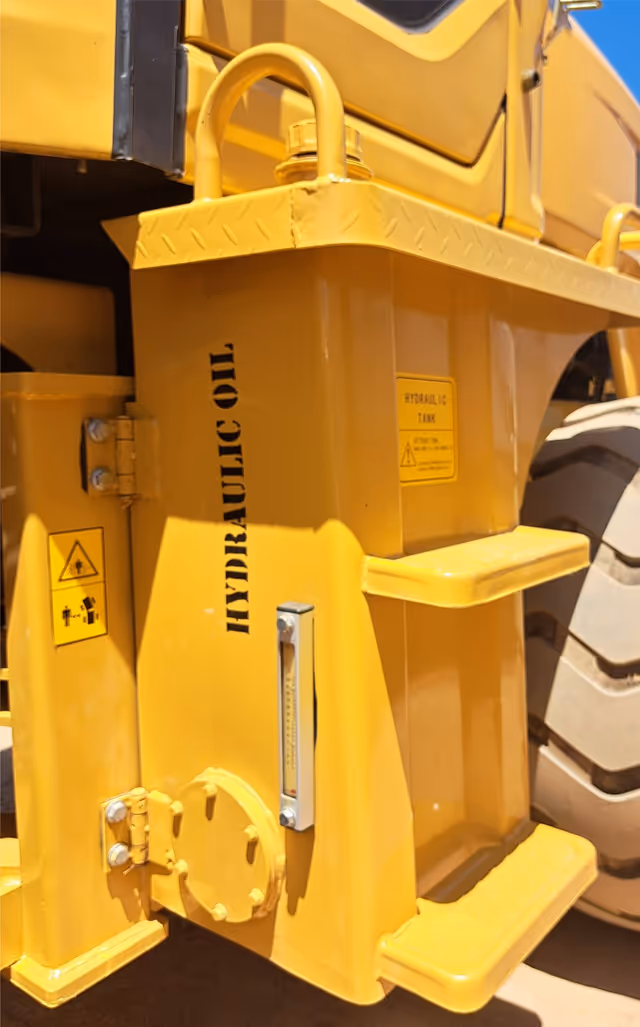

Working Hydraulics
Lifting Time
4s
Falling Time
3s
Total Cycling Time
10s

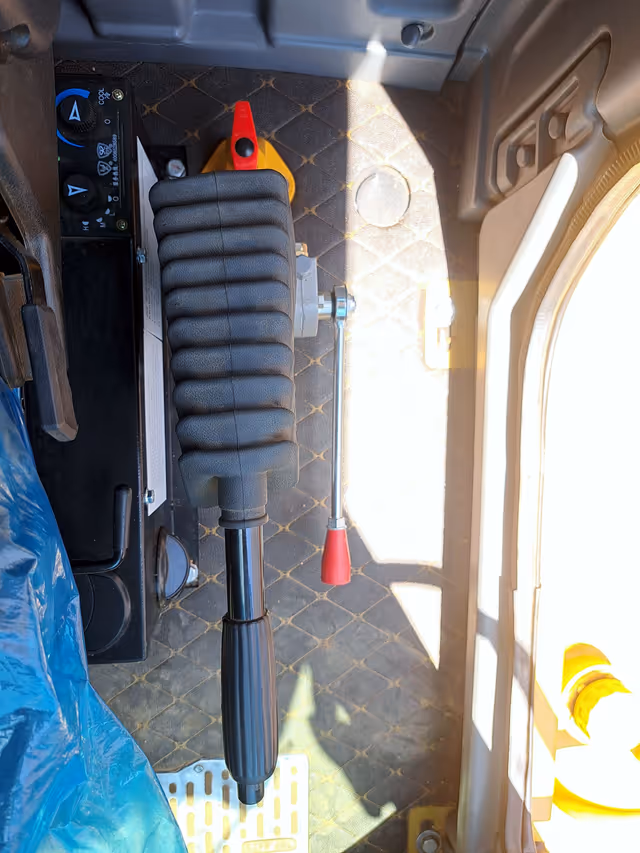

Brake System

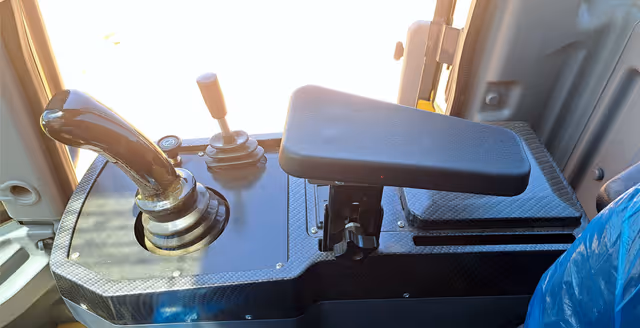

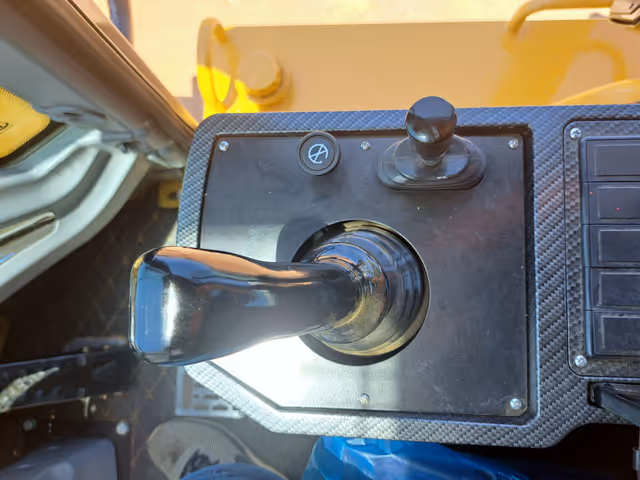

Operating Type

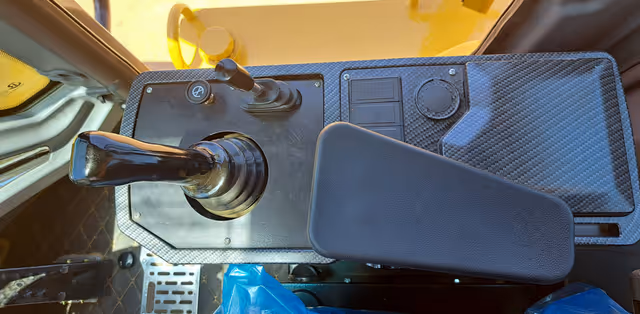

Mechanical Single Joystick
Brake Booster Pump
Two-Way Air Brake
