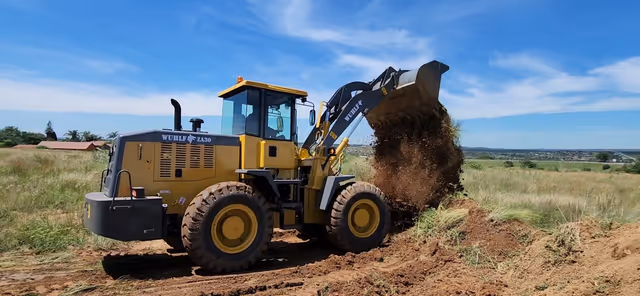

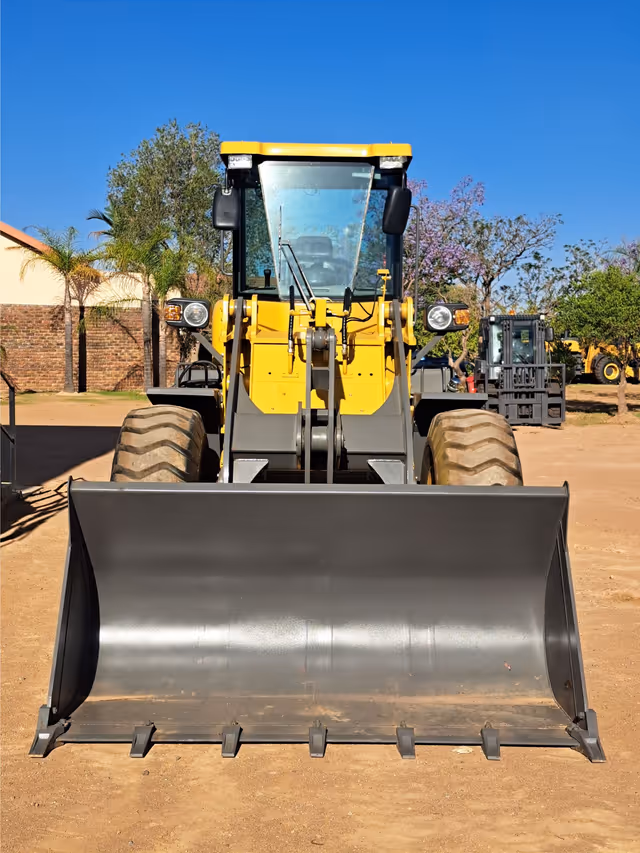

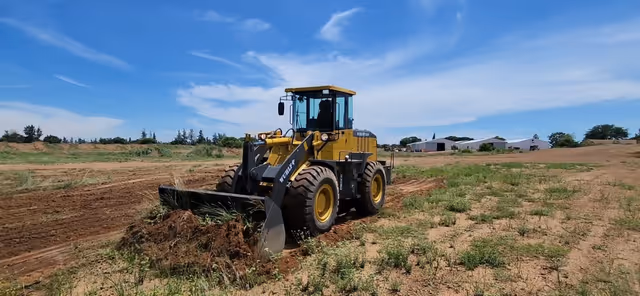

ZA30
3 Ton Front End Loader
Dimensions
Overall Length
6 750mm
Overall Width
2 260mm
Overall Height
3 040mm
Wheel Base
2 560mm
Min Ground Clearance
400mm
Max Dumping Height
3 950mm
Dumping Reach
1 250mm
Specifications
Operating Weight
9 000kg
Rated Load
3.0 Ton
Bucket Capacity
1.7m³
Raising Time
5.5s
Max Breaking Force
110kn
Max Pulling Force
90kn
Min Turn Radius
5 150mm
Specification
Max Climbing Gradient
30°
Traveling Speed
Front Speed Range
0-36 km/h
Rear Speed Range
0-25 km/h

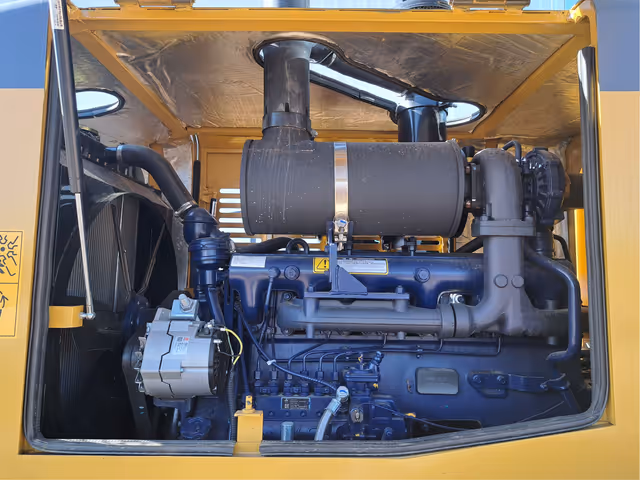

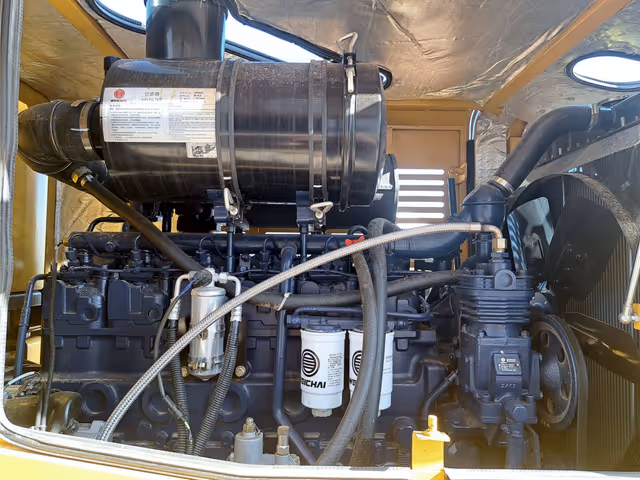

Engine
Rated Power
92kW
Model
Weichai WP6G125E22

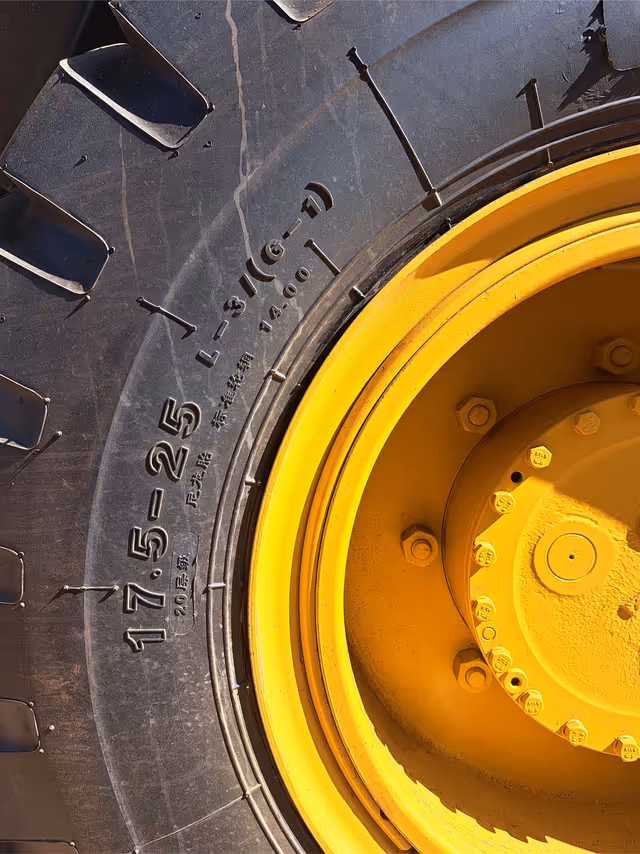

Tyres
Standard Size
17.5-25
Tank Capacities

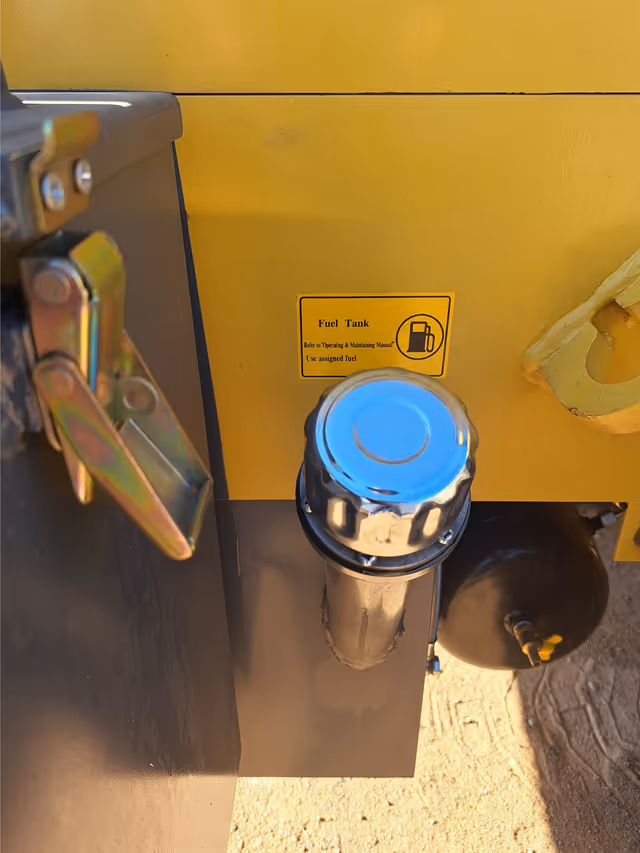

Fuel Tank
150 L
Hydraulic Oil Tank
150 L
Gear Box Oil Tank
42 L
Tank Capacites
Engine Oil Tank
13 L
Axle
Type
ZL30E
Transmission
Type
Mechanical Power Shift
Torque Convertor Model
YJ315X
Gear Shifting
BS428/ZL30
Steering
Type
Full Hydraulic Articulated Frame Steering
Working Hydraulics
System Type
Mechanical
Bucket Lifting Time
5.5s
