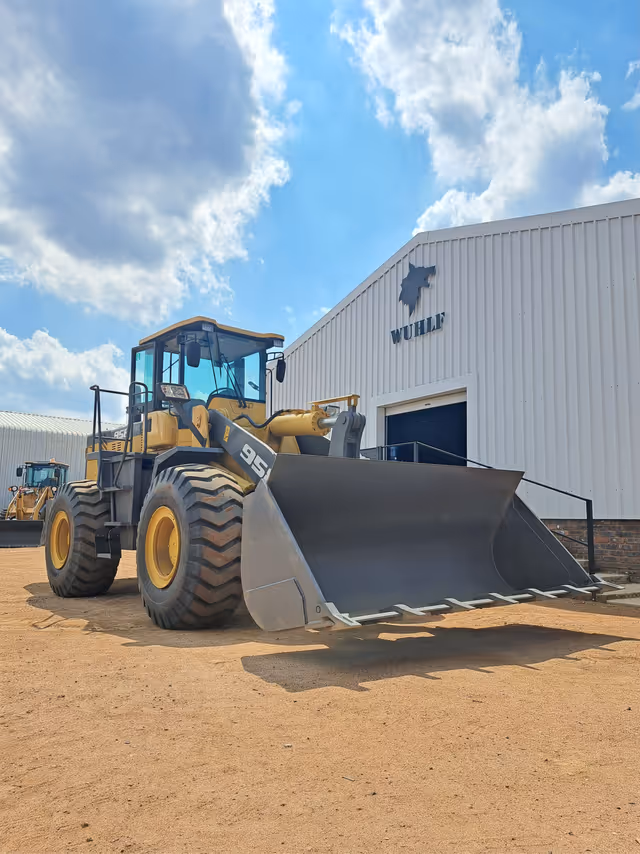

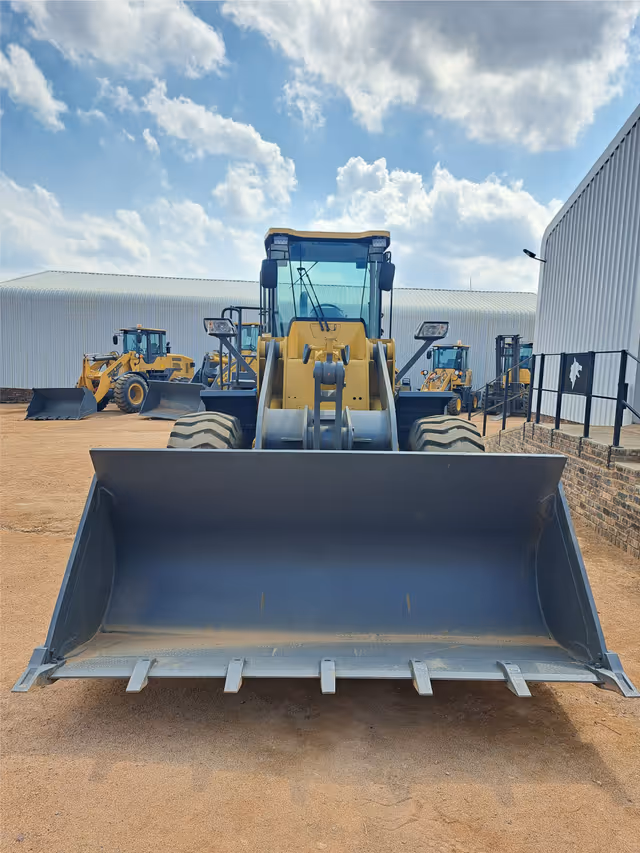

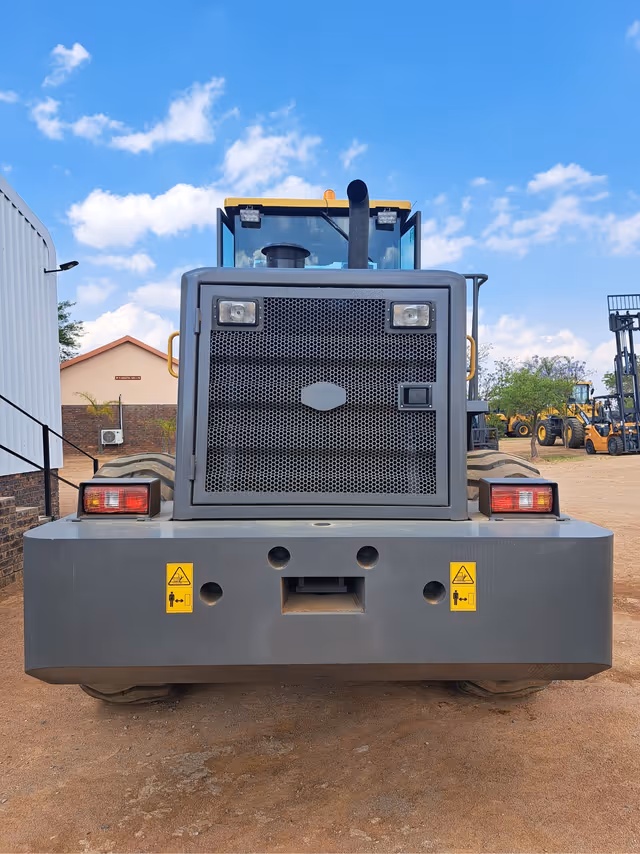

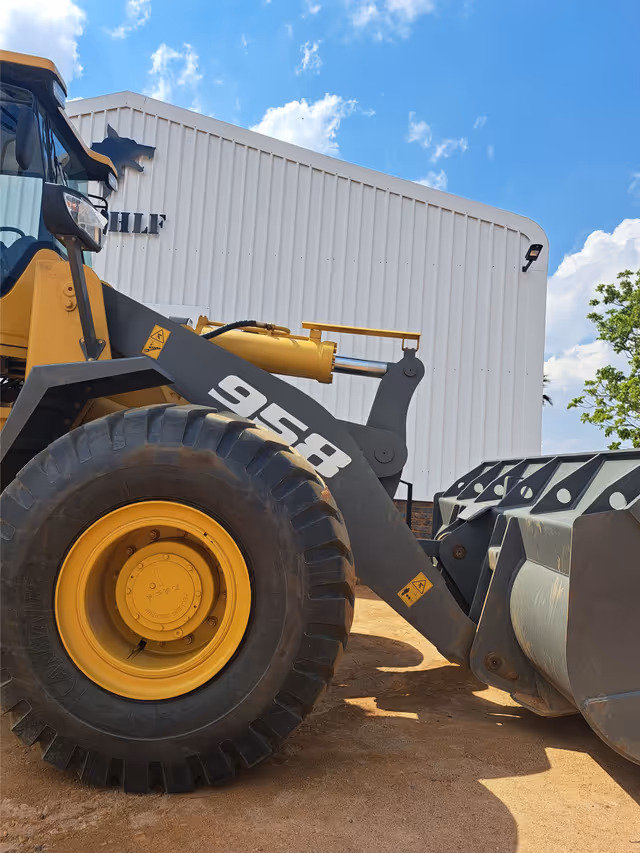

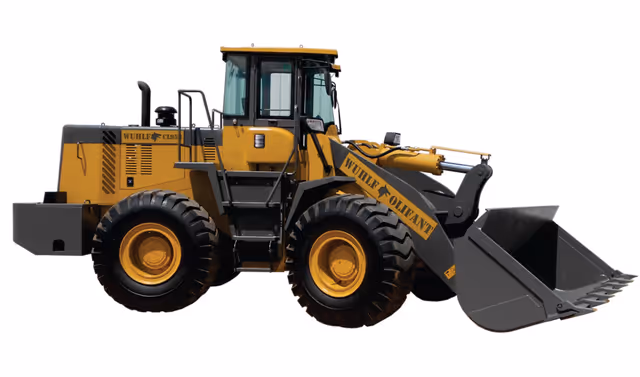

ZA50 Olifant
5 Ton Front End Loader
Dimensions
Overall Length
8 000mm
Overall Width
2 820mm
Overall Height
3 500mm
Bucket Width
3 100mm
Wheel Base
3 250mm
Min Ground Clearance
500mm
Max Dumping Clearance
3 300mm
Max Dumping Height
4 100mm
Dumping Reach
1 700mm
Operating Weight
17 000kg
Specifications
Bucket Capacity
3.0m³
Rated Load
5.0 Ton
Raising Time
5.7s
Max Breaking Force
160kn
Max Drawing Force
150kn
Max Climbing Gradient
30°
Min Turn Radius
5 900mm
Traveling Speed
1st Gear
0 - 15 km/h
2nd Gear
0 - 38 km/h
Reverse Gear
0 - 27 km/h

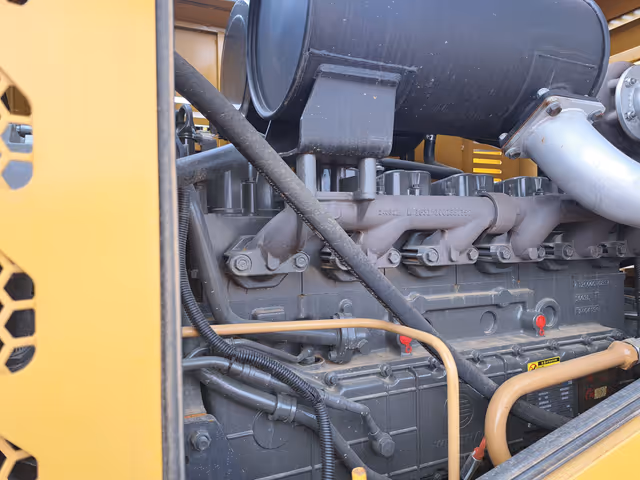

Engine
Rated Power
162kW
Rated Speed
2 200rpm
Model
WD61567/g3-36
Tyres

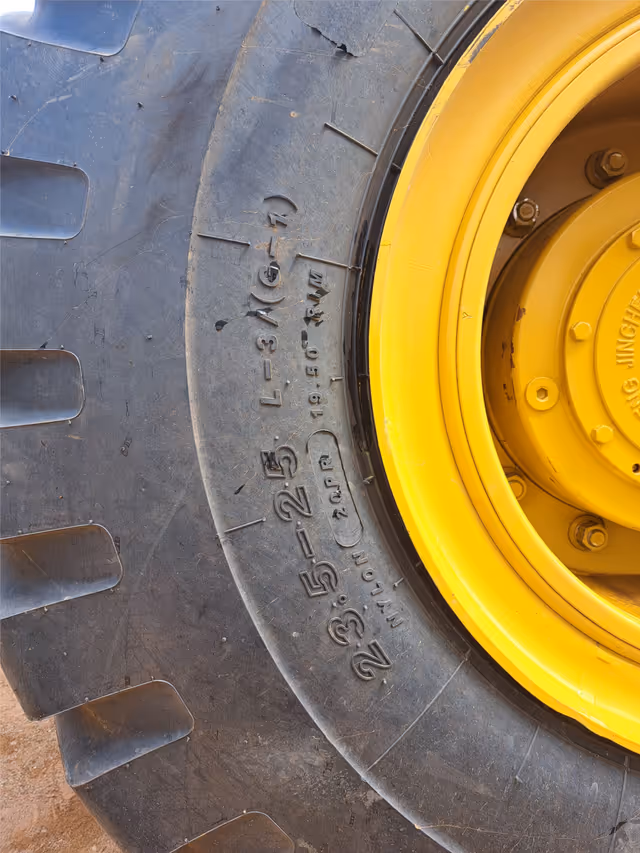

Standard Tyre Size
23.5-25
Front Pressure
0.343mpa
Rear Pressure
0.294mpa
Tank Capacities
Fuel Tank
270 L
Hydraulic Oil Tank
210 L
Engine Oil
18 L
Gear Box
45 L
Axle and Final Reducer
30 L
Brake System
4 L
Axle and Main Transmission
Type
Single Stage
Reducer Ratio
4.19
Final Reducer
Single Stage Planetary
Transmission
Type
Power Shift Transmission
Torque Coefficient
4.19
Main Valve Pressure Starts
1.20 - 1.40mpa
Flow Valve Pressure Starts
0.50 - 0.60mpa
Flux
82 L/min
Articulation
Type
Full Hydraulic Articulated Frame Steering
Steering angle
35 °
Working Hydraulics
System Type
Open Mode Controlling
Working System Pressure
16mpa
Bucket Delivery Time
1.1s
Brake System
Brake Pressure
0.45 - 0.68mpa
Foot Brake Type
Air Assisted
Handbrake Type
Soft Shaft Control Inner Expand Hoof Brake
